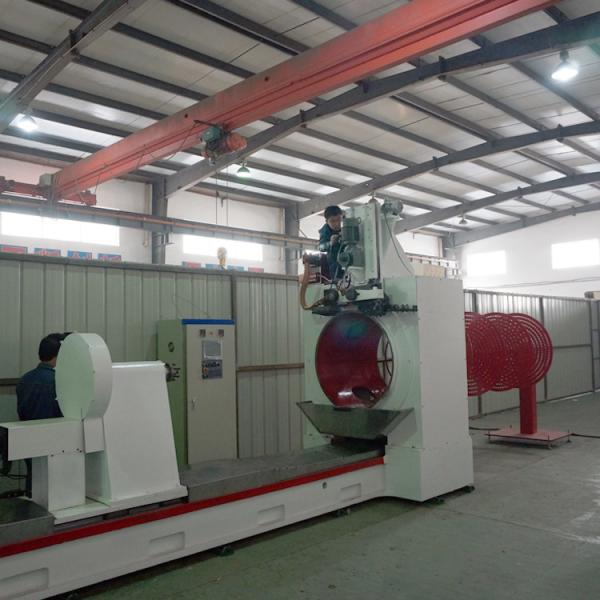

    9500MM Length Johnson Wire Screen Welding Machine For Pulp / Paper

    Ask Lasest Price
    Brand Name : Renchun
    Model Number : HWJ300
    Payment Terms : D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : 30-90 days
    Supply Ability : 50 Set/Sets per Year
    • Product Details
    • Company Profile

    9500MM Length Johnson Wire Screen Welding Machine For Pulp / Paper

    9500MM Length Johnson Wire Screen Welding Machine For Pulp / Paper

    1. Desciption


    Are you familiar with HWJ300 Johnson Screen Welding Machine?

    Regarding to the Johnson Screen ,we believe many people have good knowledge of this kind products.

    At present ,basing on the Johnson Screen good features(Fine slot size, high filtering precision, firm structure, high temperature, and corrosion resistance), Johnson Screen and wedge wire screen almost instead of bridge screen, slotted screen, and others.

    Our Johnson Screen welding machine is an special equipment for making wedge wire screen, wire wrapped screen, johnson screen, and water well screen etc.


    Fundamentals Of Welding
    HWJ300 Johnson Screen Welding Machine adopts Japanese Mitsubishi E60 CNC control system.
    Controlled by the Numeral control system, the servo motor drives the ball screw as well as the drawing disk which is mounted on the straight rail, so the slot clearance can be adjusted by touching the control screen without stopping the machine.


    It is easy to change the data on the touching screen. Lock-expanding ring is equipped on the machine. After the operator feeds the longitudinal wire, expand and lock the wire with the ring.

    It saves time and material during unload the filter tube.It is easy to learn how to control the machine. t adopts Japanese Mitsubishi E60 CNC control system.

    2. Applications

    HWJ300 Johnson Screen Welding Machine,also named wedge wire screen welding machine, is usually used in producing Oil sand control screen, water well screen, the water ,nozzles, and so on. with screen media higher precision, which is widely used in petroleum, chemical, and paper industries.


    3. Parameter

    NO.ITEMData
    1Diameter of screen tubeMax.300mm,Min.50mm.
    2Max. Length of filter tube6000mm
    3Rod and wire diameter

    1.2mm to 3mm(profile wire)
    Please note that:you can also use the biger wire size ,while you should be sure the biger size wire is used to weld the biger diameter screen tube.

    4MaterialCarbon steel, stainless steel
    5

    servo motor

    Two sets:5.5KW,One set:3.5KW

    6Power of welding transformer200KVA
    7Welding speed is adjustable according to the tube diameterMax.30rpm,6rpm
    8Slot(adjustable)Min0.2mm,Max.16mm
    9precision of slot±0.03mm

    4. HWJ300 Johnson Screen Welding MachineFeatures and Advantages

    A. low noise
    B. less power consumption
    C. safety
    D. easy to operate
    E.high welding precision


    Advantages: Domestic famous bearings, Internal famous servo motor, less power consumption, easily operation

    5. Packing And Shipping

    6. Our customer
    Sale market:
      Domestic market: Heilongjiang , Liaoning, Tianjin, Hebei, Henan, Shandong, Shanghai, Guizhou, Hubei, Shanxi, Jiangsu, etc.
      Foreign market: the United States, Brazil, Italy, Belgium, South Korea, Singapore, Tunisia, Turkey, Russia, India, etc.
      Enterprise development concept and service
      friendly cooperation
      development and innovation,
      mutual benefit
