    Wrapped Wedge Wire Screen Machine 200KVA Rated Capacity Servo Motor Drives

    Ask Lasest Price
    Brand Name : REN CHUN
    Model Number : HWJ1000
    Payment Terms : D/P, T/T, Western Union, MoneyGram, D/A, L/C
    Delivery Time : 30-90 days
    • Product Details
    • Company Profile

    Wrapped Wedge Wire Screen Machine 200KVA Rated Capacity Servo Motor Drives

    Wrapped Wedge Wire Screen Machine 200KVA Rated Capacity Servo Motor Drives

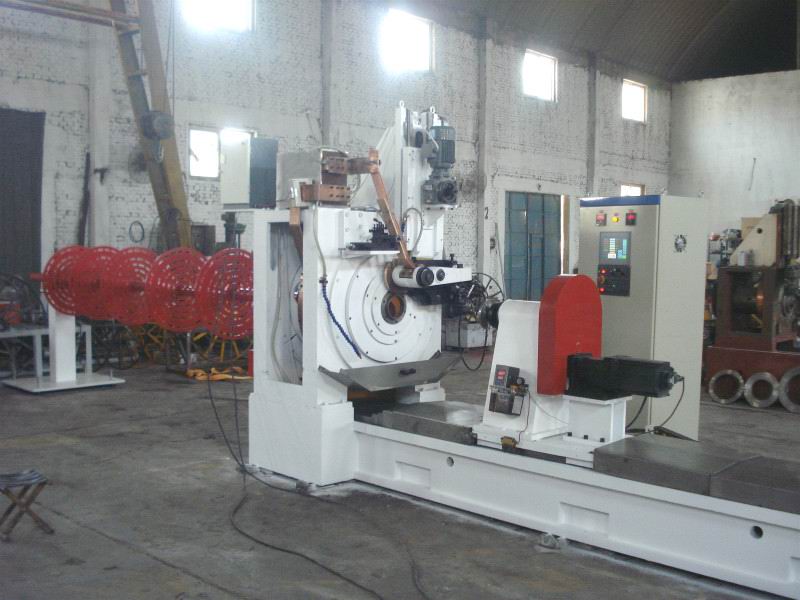

    Wedge wire screen welding machines adopts resistance welding fundamental.


    Controlled by the Numeral control system, the servo motor drives the ball screw as well as the drawing disk which is mounted on the straight rail, so the slot clearance can be adjusted by touching the control screen without st


    wedge wire screen mesh welding machine


    Usage: welding wire wrapped screen pipe, mineral filtrating mesh, coal washing mesh, water filtration mesh, water well screen etc.opping the machine.


    No.ITEMData
    1Diameter of screenMin.300mm,Max.1000
    2Max.Length of filter tube4000mm
    3Rod and wire diamter1.2 to 3mm(profile wire)
    4MaterialCarbon steel,stainless steel
    5Servo motorTwo sets:7KW,One set:5KW
    6Power of welding Transformer200kva
    7Welding speed6-30rpm
    8Slot0.2-16mm
    9Precision of slot+/-0.03mm
    10Gross weight12 Ton
    11Outside DimensionL13000mm*W1500mm*H2100mm

    HWJ1000 Monopoly Of Sale Wedge Wire Screen Machine/Wedge Wire Screen Stainless Steel

    our customer


    HWJ1000 Wrap wire screen welding machine With Double Bearings


    wedge wire water well screen welding machine

    The wedge wire water well screen welding machine is special for welding wedge wire screen (mesh), water well screen (mesh), Vee-wire screen (mesh) for any filtering purpose in chemistry, mining industry and enviromental protection industry, etc.




    4. Features and advantages

    A. low noise
    B. less power consumption
    C. safety
    D. easy to operate
    E. high welding precision


    After-Sales Service

    1. We offer installation and train the workers for the customers.
    2. Guarantee time:one year since the machine was installed at buyer's factory but within 18 months against B/L date.
    3. We can help design the layout of the machine placed in the factory.

    Pre-Sales Service

    * Inquiry and consulting support. * Sample testing support. * View our Factory.

    After-sales service: We offer installation and train the workers for the customers.


    Our guarantee time: one year since the machine was installed at buyer's factory but within 12months against B/L date.


    The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request
