    30RPM Max Oil Well Screen Wire Mesh Making Machine 0.01MM Tolerance

    Ask Lasest Price
    Brand Name : Renchun
    Model Number : HWJ300
    Payment Terms : D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : 30-90 days
    Supply Ability : 50 Set/Sets per Year
    • Product Details
    • Company Profile

    30RPM Max Oil Well Screen Wire Mesh Making Machine 0.01MM Tolerance

    30RPM Max Oil Well Screen Wire Mesh Making Machine 0.01MM Tolerance​

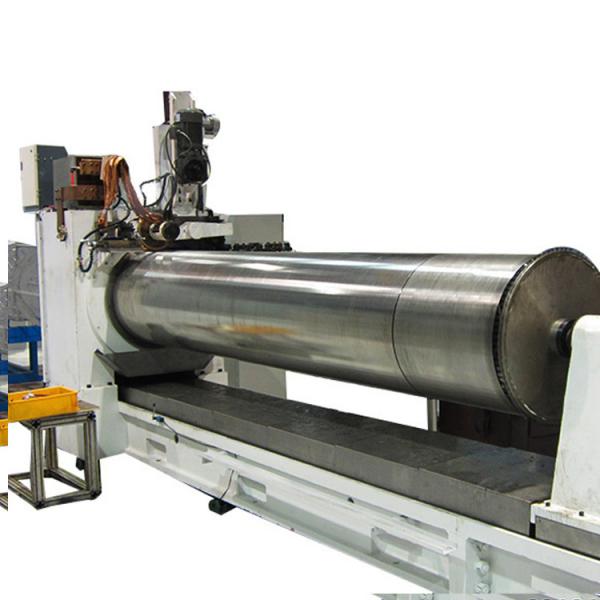

    The Weld Wire Mesh screens Machine is intended for manufacturing of wedged wire screens in length up to max. 4000/6000mm. The strength, precision and design flexibility that characterize our screens makes them the choice in a broad range of industries and applications. It made up of CNC mainframe, welding transformer, control cabinet and so on.



    Specifications


    Equipment name

    Tube diameterTube lengthWire range

    machine

    material

    Carbon steel stainless steel

    Mitsubishi servo motorWelding transfer powerWeiding speedClearance of slotPrecision of slot
    HWJ1200600-1200mm4000mm1.5*2.5-3.7*6Carbon steel stainless steelTwo 7.5kw motors one 5.5kw motor200KVA6-10rpm0.2-16mm±0.03mm
    HWJ1000300-1000mm3000 or 4000mm1.5*2.5-3.7*6Carbon steel stainless steelTwo 7.5kw motors one 5.5 kw motor200KVA6-20rpm0.15-16mm±0.03
    HWJ850200-850mm3000 or 4000mm1.5*2.5-3.2*5Carbon steel stainless steelTwo 7.5kw motors one 5.5 kw motor200KVA6-20rpm0.15-16mm±0.03
    HWJ650150-650mm4000 or 6000mm1.2*2-2.7*4Carbon steel stainless steelTwo 7.5kw motors one 5.5 kw motor200KVA6-30rpm0.15-16mm±0.03
    HWJ300800-300mm4000 or 6000mm1.0*1.5-2.7*3Carbon steel stainless steelTwo 7.5kw motors one 5.5 kw motor200KVA6-40rpm0.10-16mm±0.02
    HWJ20050-200mm2000*3000mm0.75*1-2.2*2.5Carbon steel stainless steelTwo 7.5kw motors one 5.5 kw motor200KVA6-40rpm0.08-16mm±0.02

    NO.ITEMData
    1Diameter of screen tubeMax.300mm, Min.50mm.
    2Max. Length of filter tube6000mm
    3Rod and wire diameter

    1.2mm to 3mm(profile wire)

    Please note that:you can also use the biger wire size ,while you should be sure the biger size wire is used to weld the biger diameter screen tube.

    4MaterialCarbon steel, stainless steel
    5

    servo motor


    Two sets:5.5KW,One set:3.5KW


    6Power of welding transformer200KVA
    7Welding speed is adjustable according to the tube diameterMax.30rpm,6rpm
    8Slot(adjustable)Min0.2mm,Max.16mm
    9precision of slot±0.03mm

    1) Machine body in casting improve structure stability .

    2) Adopting advanced world famous brand components in ballscrew and linear guide .

    3) High pressure double crank to control the die opening and closing.

    4) Running in a Mitsubishi control system ensuring system stability,clear guidance,easy operation.

    5) Apply a Humanized design, which can remote control the limited ballscrew move back and forth, with improvement of the cantilever type control panel
