    Mineral Sieve Screen Wire Mesh Welding Machine 2300MM Height Low Noise

    Ask Lasest Price
    Brand Name : Renchun
    Model Number : HWJ1000
    Payment Terms : D/P, T/T, Western Union, MoneyGram, D/A, L/C
    Delivery Time : 30-90 days
    • Product Details
    • Company Profile

    Mineral Sieve Screen Wire Mesh Welding Machine 2300MM Height Low Noise

    Mineral Sieve Screen Wire Mesh Welding Machine 2300MM Height Low Noise ​

    1. Wedge wire screen machine description

    Our machines named by the products that it produces.the machines can be called wedge wire screen welding machine,johnson screen welding machine ,NC stainless steel screen welding machine ,wire screen machine,water well screen welding machine ,wrapped wire screen welding machine etc.

    The wedged wire screen welding machines is intended for manufacturing of wedge wire screens in length up to max.6000mm. the strength, precision, and design flexibility that characterize our screens makes them the choice a broad range of industries

    and applications. it made up of CNC mainframe, welding transformer, control cabinet and so on.
    the usage for welding wedged wire wrapped screen pipe, mineral filtrating mesh, coal washing mesh, water filtration, water well screen, etc.


    Q: What's the machine price?
    A: We need to know your wanted screen diameter, screen length, V-wire size, V-wire space ETC.
    Q: Can you make voltage according to my requirement?
    A: yes, we can make 3 phase, 380V/220V/415V/440V, 50Hz or 60Hz etc.
    Q: What's the payment terms?
    A: 30% T/T in advance, 70% T/T before shipment, or 100% irrevocable L/C at sight, or cash etc.
    It is negotiationable.
    Q: How to install the machines?
    A: Please check below "After sales service".

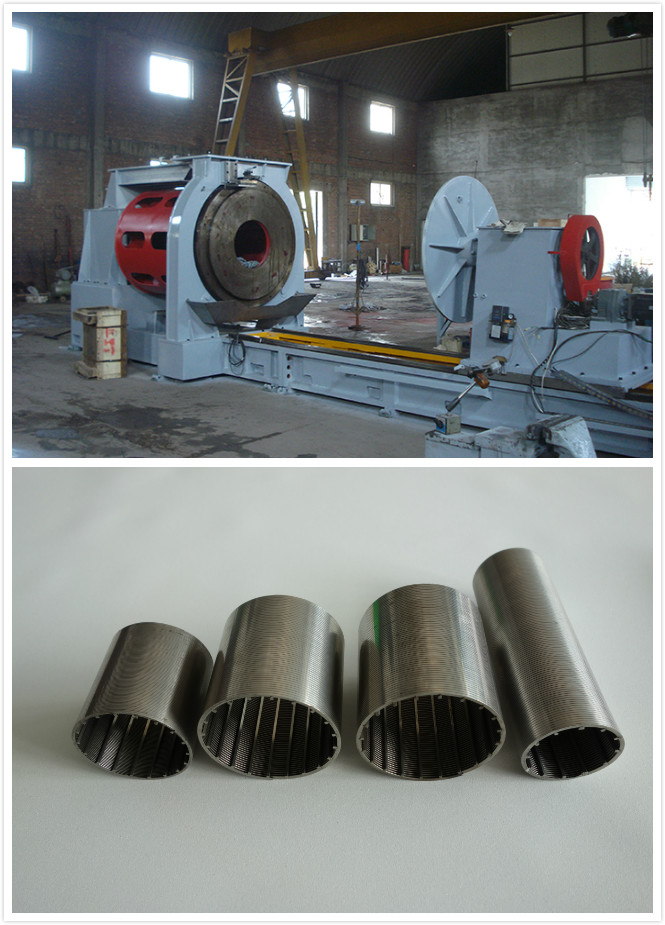

    Renchun Mineral Sieve Wedge Wire Screen Welded Machine HWJ1000
    How to weld the Wedge wire screen using the machines?

    Wedge wire screen machine adopts Japanese Mitsubishi E60 CNC control system.

    Controlled by the Numeral control system, the servo motor drives the ball screw as well as the drawing disk which is mounted on the straight rail, so the slot clearance can be adjusted by touching the control screen without stopping the machine.


    2. Renchun Mineral Sieve Wedge Wire Screen Welded Machine HWJ1000

    No.ITEMData
    1Diameter of screenMin.300mm,Max.1000
    2Max.Length of filter tube4000mm
    3Rod and wire diamter1.2 to 3mm(profile wire)
    4MaterialCarbon steel,stainless steel
    5Servo motorTwo sets:7KW,One set:5KW
    6Power of welding Transformer200kva
    7Welding speed6-30rpm
    8Slot0.2-16mm
    9Precision of slot+/-0.03mm
    10Gross weight12 Ton
    11Outside DimensionL13000mm*W1500mm*H2100mm


    3. Renchun Mineral Sieve Wedge Wire Screen Welded Machine HWJ1000


    4. Features and advantages


    A. low noise
    B. less power consumption
    C. safety
    D. easy to operate
    E. high welding precision

    Pre-Sales Service

    * Inquiry and consulting support.* Sample testing support.* View our Factory.

    After-Sales Service

    * Training how to instal the machine, training how to use the machine.
    * Engineers available to service machinery overseas.



    5 Packing and loading
    1.The mechanical parts bared in container
    2.Touch screen and control cabinet packed in wooden box.
