Brand Name : | Renchun |
Model Number : | HWJ1000 |
Payment Terms : | D/P, T/T, Western Union, MoneyGram, D/A, L/C |
Delivery Time : | 30-90 days |
Wedge wire screen welding machines adopts resistance welding
fundamental.
Controlled by the Numeral control system, the servo motor drives
the ball screw as well as the drawing disk which is mounted on the
straight rail, so the slot clearance can be adjusted by touching
the control screen without stopping the machine
Specifications

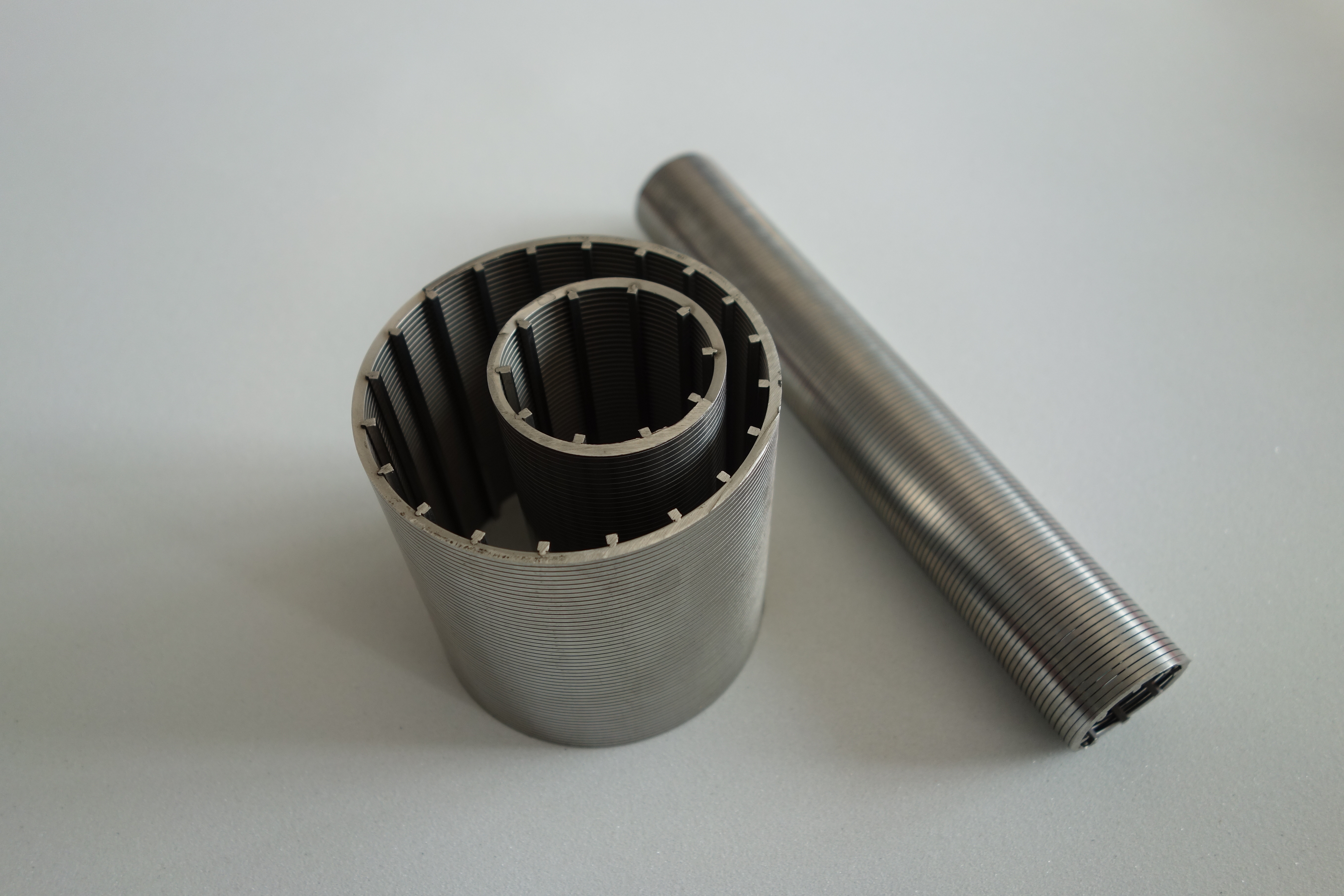

This machine is special for welding filter tubes for any filtering
purpose in chemistry, mining industry, etc..
Main features:
l This machine is of two-axle CNC control, servo motor drive, high
welding precision.
l Two working methods: manual and auto. Under Auto method, by
inputting relative data, the machine will work automatically.
l Very strong self-diagnose function, can display any mis-operation
alarms; Alarming error can be seen from displayer.
It is easy to change the data on the touching screen.
Lock-expanding ring is equipped on the machine. After the operator
feeds the longitudinal wire, expand and lock the wire with the
ring.
It saves time and material during unload the filter tube.It is easy
to learn how to control the machine.
No. | ITEM | Data |
1 | Diameter of screen | Min.300mm,Max.1000 |
2 | Max.Length of filter tube | 4000mm |
3 | Rod and wire diamter | 1.2 to 3mm(profile wire) |
4 | Material | Carbon steel,stainless steel |
5 | Servo motor | Two sets:7KW,One set:5KW |
6 | Power of welding Transformer | 200kva |
7 | Welding speed | 6-30rpm |
8 | Slot | 0.2-16mm |
9 | Precision of slot | +/-0.03mm |
10 | Gross weight | 12 Ton |
11 | Outside Dimension | L13000mm*W1500mm*H2100mm |
I Main features of the wedge wire water well screen welding machine
II Main technical data of the wedge wire well screen welding
machine
2.1 Filter tube diameter range: 60-600mm (can be max. 1200mm)
2.2 Filter tube length: max. 6m
2.3 Suitable wire: stainless steel or carbon steel, diameter
1.5-5mm
2.4 Space between welding lines: 0.1 to 16mm
2.5 Welding precision: if wire diameter tolerance is within 0.01mm,
welding precision will be within +/-0.03mm
2.6 Welding speed: 6-30rpm adjustable based on tube diameter
2.7 Welding transformer power: AC 200kW
2.8 Driving motor power: servo motor 2kW x 3
2.9 Tool changing speed: within half hour
2.10 Dimension: about 11m x 1.4m x 2.5m
2.11 Weight: about 5 tons
III Main figuration of wedge wire water well screen welding machine
-- CNC control system: Siemens 6ES from Germany
-- Servo motor and servo driver: Mitsubishi from Japan
-- Ball screw: ABBA from Taiwan
-- Linear rail: famous brand from Korea
Shijiazhuang Renchun Mesh Equipment Co.,Ltd.(primitive name -Hebei
Zhengda Machinery company) is a professional manufacturer which is
specialized in product developing, designing and machine
manufacturing .
With higher researching and developing ability of parent
company(Shijiazhuang bearing equipment co., LTD.),We have designed
wedge wire screen welding machine.
We satisfy our client by the perfect design,new
technology,practical function and easy operation.
Our machines have obtained the patent for our technology.
Our machine products:NC wrap wire screen welding machine,wedge wire
screen welding machine ,oil filter welding / slotted screen welding
machine and johnson screen welding machine.
With perfect machines,we can also product various type of screen
media: johnson screen,wedge wire screen cylinder, water well screen
tank, mine screen,screen panel ,screen basket ,sieve bend and so
on.
Application usage:Petroleum chemical industry, mining, water
treatment, as well as food.
![]() |
