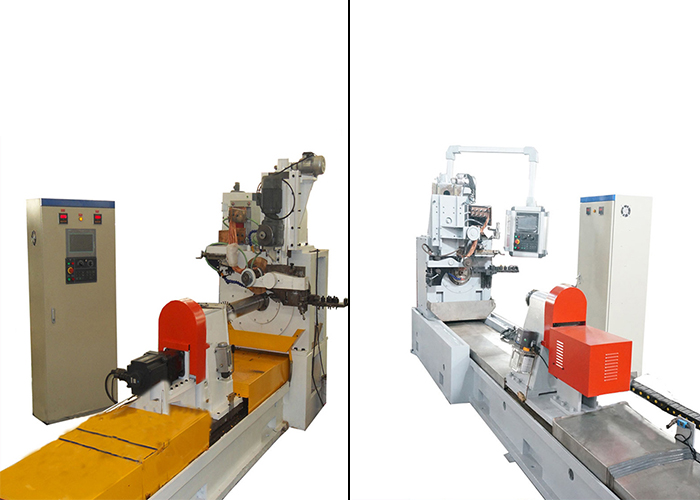

40RPM Max Johnson Wedge Wire Screen Welding Machine E60 CNC Control
System
About us
Shijiazhuang Renchun Mesh Equipment Co.,Ltd. is a profession
company which focus on researching, desiging,and production wedge
wire screen welding machine. we satisfy our clients by the prefect
design, new technology, practical function, and easy operation. we
have obtained the patent for technology.
Wedge Wire Screen Welding Machine Gemeral Applications
The wedge wire welding machine is special for welding wedge wire
screen (mesh), water well screen (mesh), Vee-wire screen (mesh) for
any filtering purpose in chemistry, mining industry and
environmental protection industry, etc.
Why do you choose us?
1. we are professional manufacturer, we have obtained the patent
for our technology, we worked in this territory for twenty years.
2. we could provided high quality with competetive price machines
for you.
3. we provided good service for you, support oversea training for
free.
4. twenty years just to produce a machine.
Wedge Wire Screen Welding Machine Description
How to weld wedge wire screen by using wedge wire screen welding
machine?
Wedge Wire Screen welding equipment adopts Japanese Mitsubishi E60
CNC control system.
Controlled by the Numeral control system, the servo motor drives
the ball screw as well as the drawing disk which is mounted on the
straight rail, so the slot clearance can be adjusted by touching
the control screen without stopping the machine.
It is easy to change the data on the touching screen.
Lock-expanding ring is equipped on the machine. After the operator
feeds the longitudinal wire, expand and lock the wire with the
ring.
Wedge Wire Screen Welding Machine Description Parameter
| 1 | Diameter of screen tube | Max.200mm,Min.50mm |
| 2 | Max. Length of filter tube | 4000-6000mm |
| 3 | Rod and wire diameter | 0.75mm to 1.5mm(profile wire) |
| 4 | Material | Carbon steel, stainless steel |
| 5 | servo motor | Three sets:2.5KW |
| 6 | Power of welding transformer | 200KVA |
| 7 | Welding speed is adjustable according to the tube diameter | Max.40rpm,Min6rpm |
| 8 | Slot(adjustable) | Min0.08,Max.5mm |
| 9 | precision of slot | ±0.02mm |
Our customer
We have exported the wedge wire screen welding machines to many
countries. Such as: United States, Brazil, Italy, Belgium, South
Korea, Singapore, Tunisia, Turkey, Russia, India, etc.
Wedge Wire Screen Welding Machine Packing and loading
1. The mechanical parts bared in container
2. Touch screen and control cabinet packed in wooden box.
