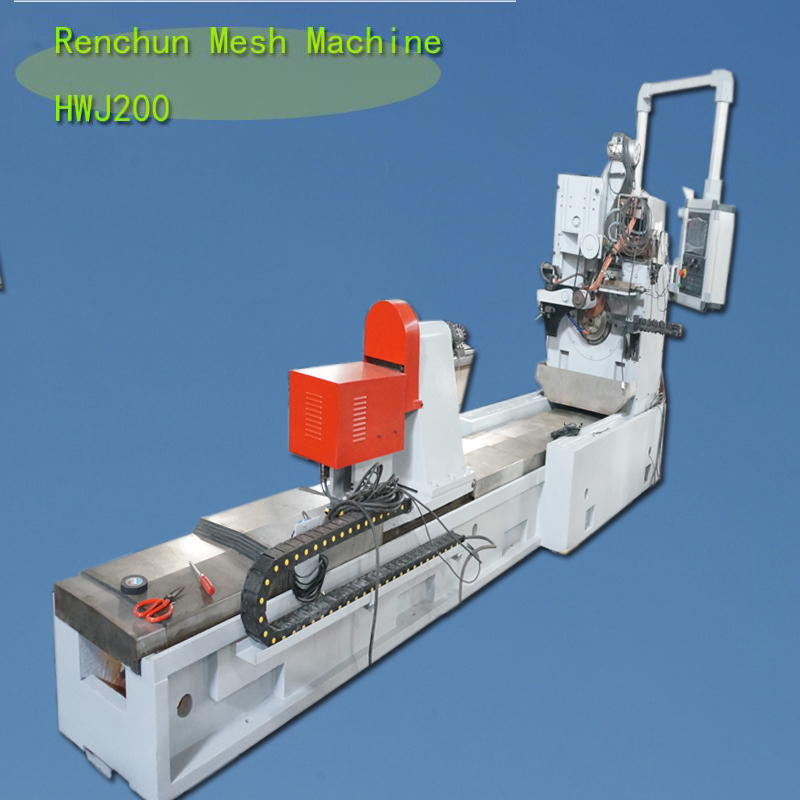

Water Well Screen / Cylinder Screen Welding Machine Casting Lathe Material

I Main features of the wedge wire screen welding machine

1) This machine is of two-axle CNC control, servo motor drive, high welding precision.

2) Two working methods: manual and auto. Under Auto method, by inputting relative data, the machine will work automatically.

3) Very strong self-diagnose function, can display any mis-operation alarms; Alarming error can be seen from displayer.

II Main technical data wedge wire screen welding machine

2.1 Filter tube diameter range: 60-600mm (can be max. 1200mm)

2.2 Filter tube length: max. 6m

2.3 Suitable wire: stainless steel or carbon steel, diameter 1.5-5mm

2.4 Space between welding lines: 0.1 to 16mm

2.5 Welding precision: if wire diameter tolerance is within 0.01mm, welding precision will be within +/-0.03mm

2.6 Welding speed: 6-30rpm adjustable based on tube diameter

2.7 Welding transformer power: AC 200kW

2.8 Driving motor power: servo motor 2kW x 3

2.9 Tool changing speed: within half hour

2.10 Dimension: about 11m x 1.4m x 2.5m

2.11 Weight: about 5 tons

3. Parameter

Wedge Wire Cylinder /Water Well Screen/Vee-Wire Screen Welding Machine

4. Features and Advantages

A. low noise

B. less power consumption

C. safety

D. easy to operate

E. high welding precision

Advantages: Domestic famous bearings, Internal famous servo motor, less power consumption,easily operation

5. Services

Shijiazhuang Renchun Mesh Equipment Co.,Ltd.(primitive name -Hebei Zhengda Machinery company) is a professional manufacturer which is specialized in product developing, designing and machine manufacturing .

With higher researching and developing ability of parent company(Shijiazhuang bearing equipment co., LTD.),We have designed wedge wire screen welding machine.

We satisfy our client by the perfect design,new technology,practical function and easy operation.

Our machines have obtained the patent for our technology.

Our machine products:NC wrap wire screen welding machine,wedge wire screen welding machine ,oil filter welding / slotted screen welding machine and johnson screen welding machine.

With perfect machines,we can also product various type of screen media: johnson screen,wedge wire screen cylinder, water well screen tank, mine screen,screen panel ,screen basket ,sieve bend and so on.

Application usage:Petroleum chemical industry, mining, water treatment, as well as food.

Sale market:

Domestic market: Heilongjiang , Liaoning, Tianjin, Hebei, Henan, Shandong, Shanghai, Guizhou, Hubei, Shanxi, jiangsu, etc.

Foreign market: the United States, Brazil, Italy, Belgium, South Korea, Singapore, Tunisia, Turkey, Russia, India, etc.

Enterprise development concept and service

　　friendly cooperation

　　development and innovation,

　　mutual benefit

Welcome friends to our factory,we must make your trip worth well.
