CNC High Effiency Max Od 300 Wedge Wire Screen Screen Welding Machine

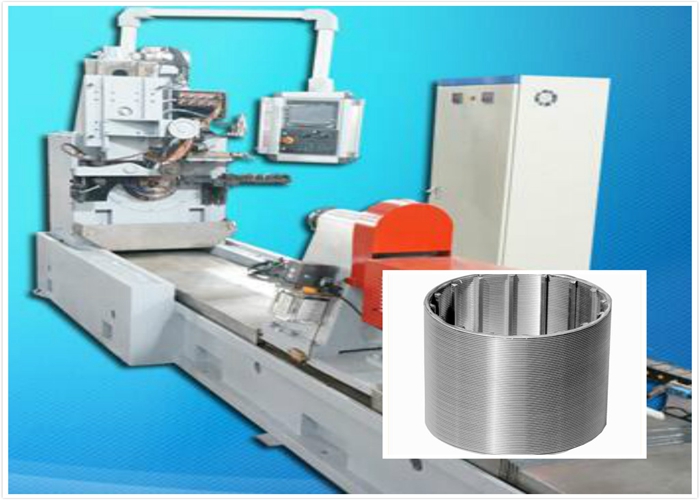

HWJ200 Type wedge wire screen welding machine(wrap wire screen machine),also named johnson screen welding machine,is usually used in producing small diameter screen tube,with its higher precision ,which is widely used in Chemicals, sugar, micro filter applications.

　　1 Diameter of wedge wire screen: Max 50mm, Min 200mm,

　　2 Max. Length of filter Tube 3000mm

　　3 Rod and wire diameter

　　0.75mm to 1.5mm.

　　4 Material Carbon steel, stainless Steel

　　5 Mitsubishi Double –drive servo motor three set: 3.5Kw

　　6 Power of welding transformer 200KVA

　　7 Welding speed is adjustable according to the tube diameter Max. 30rpm,

　　8 Slot (adjustable) Min 0.05mm, Max.16mm

　　9 Precision of slot +/- 0.02mm

　　12 PLC with, on Machine mounted, Touch Screen on rotating ARM

　　Mitsubishi/Siemens

　　13 tooling : two sets for free(as buyers’ requirement)

CNC High Effiency Max Od 200 Wedge Wire Screen Screen Welding Machine

What is Fundamentals Of Weld Wire Mesh Machine?

Stainless Steel AISI304 Weld Wire Mesh Welding Machine For Filtration And Sepration adopts Japanese Mitsubishi E60 CNC control system.

Controlled by the Numeral control system, the servo motor drives the ball screw as well as the drawing disk which is mounted on the straight rail, so the slot clearance can be adjusted by touching the control screen without stopping the machine.

It is easy to change the data on the touching screen. Lock-expanding ring is equipped with the machine. After the operator feeds the longitudinal wire, expand and lock the wire with the ring.

It saves time and material during unload the filter tube.It is easy to learn how to control the machine. It adopts Japanese Mitsubishi E60 CNC control system.

CNC High Effiency Max Od 200 Wedge Wire Screen Screen Welding Machine

2. Renchun Weld Wire Mesh Machine Features and Advantages

A. Low noise

B. Less power consumption

C. Safety

D. Easy to operate

E. High welding precision

Shijiazhuang Renchun Mesh Equipment Co.,Ltd.(primitive name -Hebei Zhengda Machinery company) is a professional manufacturer which is specialized in product developing, designing and machine manufacturing .

With higher researching and developing ability of parent company(Shijiazhuang bearing equipment co., LTD.),We have designed wedge wire screen welding machine.

We satisfy our client by the perfect design,new technology,practical function and easy operation.

Our machines have obtained the patent for our technology.

Our machine products:NC wrap wire screen welding machine,wedge wire screen welding machine ,oil filter welding / slotted screen welding machine and johnson screen welding machine.

With perfect machines,we can also product various type of screen media: johnson screen,wedge wire screen cylinder, water well screen tank, mine screen,screen panel ,screen basket ,sieve bend and so on.

Application usage:Petroleum chemical industry, mining, water treatment, as well as food.

Sale market:

Domestic market: Heilongjiang , Liaoning, Tianjin, Hebei, Henan, Shandong, Shanghai, Guizhou, Hubei, Shanxi, jiangsu, etc.

Foreign market: the United States, Brazil, Italy, Belgium, South Korea, Singapore, Tunisia, Turkey, Russia, India, etc.

Enterprise development concept and service

　　friendly cooperation

　　development and innovation,

　　mutual benefit

Welcome friends to our factory,we must make your trip worth well.
