0.05MM Water Well Screen Pipe Wire Mesh Manufacturing Machine 8010 Ball Screw​

Profile Wire Screen Welding Machine is popular to applying in wire mesh screen pipe manufacturing.

Profile wire screen is manufactured by wrapping a shaped wire around an internal array of longitudinal rods.The wire and rod, generally made from carbon or stainless steel are joined by resistance welding.
Commonly referred to as continuous slot or wire wrap screen, this product was originally developed to overcome problems associated with cable tool wells drilled in fine grained.

The cylindrical profile wire is wrapped around the longitudinal rods.The wires and rods are welded toghter. Thus the profile wire is created by the profile wire screen wire mesh screen pipe welding machine.

Machine configuration

Control system : Mitsubishi from Japan

Liner guide : Taiwan 45

Ball screw : Taiwan 8010

Filter profile screen tube:cylinder

Max tube length : 6 meter

Bearing : special bearing

Protective cover :stainless steel special protection

Servo motor : three sets

Profile wire screen wire mesh screen pipe welding machine Parameters

The welding machine can control the slot size,slot size is adjustable controlled by the system.
The data displayed on the screen can be reset easily.
Lock-expanding ring is equipped on the machine.
After the operator feeds the longitudinal wire,expand and lock the wire with the ring.
I t saves time and material during unload the filter tube.

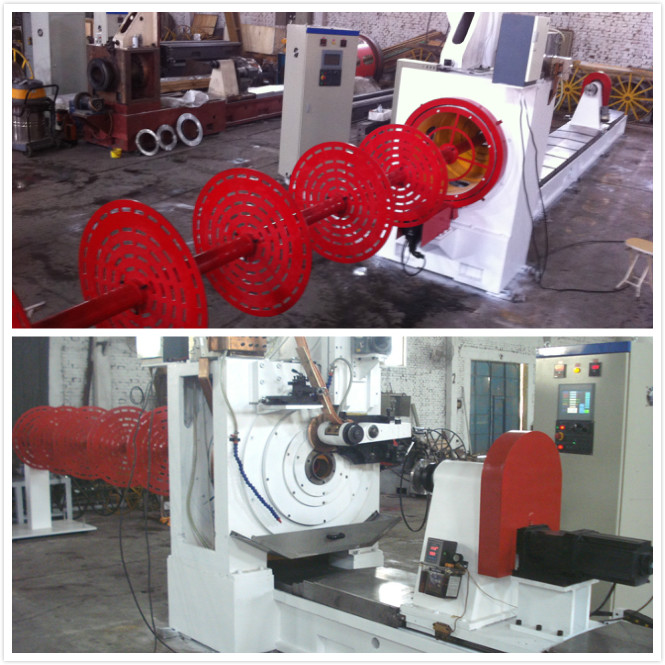

Painted for the profile wire screen machine at workshop .

Features and Advantages

1. Professional equipment manufacture with best configuration in China,

2. Feature:low noise,low energy consumption,steady function and safety.

3. Professional wedge wire screen/wire wrapped screen welding machine manufacture

4. Electric system adopts Mitsubishi E60.

5. The feeding spindle and the main spindle adopt Mitsubishi AC servo motors and drives.

Characteristics

• Low noise
• Low energy consumption
• Safety
• Steady function

Welcome to contact us!

We satisfy our clients by the perfect design,new technology,practical function and easy operation. We have obtained the patent for our technology. Best service for you!

Shijiazhuang Renchun Mesh Equipment Co.,Ltd.(primitive name -Hebei Zhengda Machinery company) is a professional manufacturer which is specialized in product developing, designing and machine manufacturing .

With higher researching and developing ability of parent company(Shijiazhuang bearing equipment co., LTD.),We have designed wedge wire screen welding machine.

We satisfy our client by the perfect design,new technology,practical function and easy operation.

Our machines have obtained the patent for our technology.

Our machine products:NC wrap wire screen welding machine,wedge wire screen welding machine ,oil filter welding / slotted screen welding machine and johnson screen welding machine.

With perfect machines,we can also product various type of screen media: johnson screen,wedge wire screen cylinder, water well screen tank, mine screen,screen panel ,screen basket ,sieve bend and so on.

Application usage:Petroleum chemical industry, mining, water treatment, as well as food.
