V Shape Woven Wedge Wire Screen Welding Machine 8700MM Length

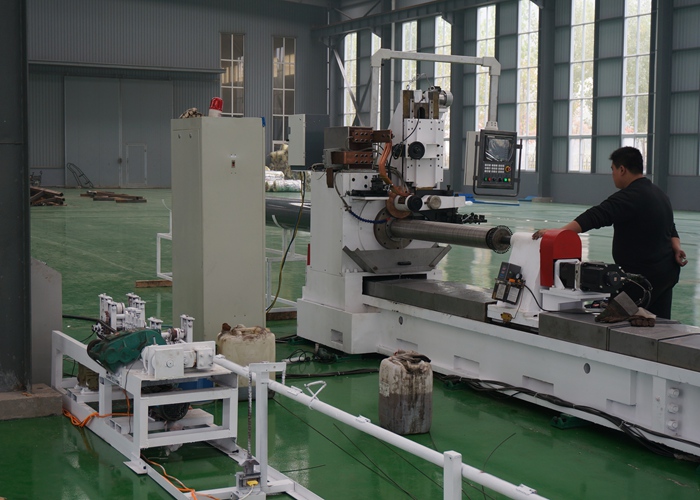

The machine tool is intended for manufacturing of wedged wire screens in length up to max. 4000mm. The strength, precision and design flexibility that characterize our screens makes them the choice in a broad range of industries and applications. It made up of CNC mainframe, welding transformer, control cabinet and so on.

The usage for welding wedged wire wrapped screen pipe, mineral filtrating mesh, coal washing mesh, water filtration mesh, water well screen etc.

Description of V Shape Woven Wedge Wire Screen Welding Machine

Regarding to the Wedge Wire Screen, we believe many people have good knowledge of this kind products.

At present ,basing on the Wedge Wire Screen good features (Fine slot size ,high filtering precision, firm structure, high temperature and corrosion resistance), Wedge Wire Screen almost instead of bridge screen,slotted screen and others.

Technologies Adopted by Our V Shape Woven Wedge Wire Screen Welding Machine

Wedge Wire Screen welding equipment adopts Japanese Mitsubishi E60 CNC control system.

Controlled by the Numeral control system, the servo motor drives the ball screw as well as the drawing disk which is mounted on the straight rail, so the slot clearance can be adjusted by touching the control screen without stopping the machine.

It is easy to change the data on the touching screen. Lock-expanding ring is equipped on the machine. After the operator feeds the longitudinal wire, expand and lock the wire with the ring.

Features:

The machine are combined by HWJ300 lathe, welding control cabinet, transformer, roller and wire rolling unit. It has strongpoint of standard welding slot distance.

Usage: welding wire wrapped screen pipe, mineral filtrating mesh, coal washing mesh, water filtration mesh, water well screen etc.

Machine functions:

Machine’s working mode: Automatic mode and Adjustable mode

a). Automatic mode, input correct variable values then the machine will working in automatic cycle.

b). Adjustable mode, every parts movement could be adjustable.

Shijiazhuang Renchun Mesh Equipment Co.,Ltd.(primitive name -Hebei Zhengda Machinery company) is a professional manufacturer which is specialized in product developing, designing and machine manufacturing .

With higher researching and developing ability of parent company(Shijiazhuang bearing equipment co., LTD.),We have designed wedge wire screen welding machine.

We satisfy our client by the perfect design,new technology,practical function and easy operation.

Our machines have obtained the patent for our technology.

Our machine products:NC wrap wire screen welding machine,wedge wire screen welding machine ,oil filter welding / slotted screen welding machine and johnson screen welding machine.

With perfect machines,we can also product various type of screen media: johnson screen,wedge wire screen cylinder, water well screen tank, mine screen,screen panel ,screen basket ,sieve bend and so on.

Application usage:Petroleum chemical industry, mining, water treatment, as well as food.

Sale market:

Domestic market: Heilongjiang , Liaoning, Tianjin, Hebei, Henan, Shandong, Shanghai, Guizhou, Hubei, Shanxi, jiangsu, etc.

Foreign market: the United States, Brazil, Italy, Belgium, South Korea, Singapore, Tunisia, Turkey, Russia, India, etc.

Enterprise development concept and service

　　friendly cooperation

　　development and innovation,

　　mutual benefit

Welcome friends to our factory,we must make your trip worth well.
