    0.05mm Slot Water Well Screen Pipe Wire Mesh Manufacturing Machine

    Ask Lasest Price
    Brand Name : Renchun
    Model Number : HWJ600
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 50 sets per year
    Delivery Time : 30-90 days
    • Product Details
    • Company Profile

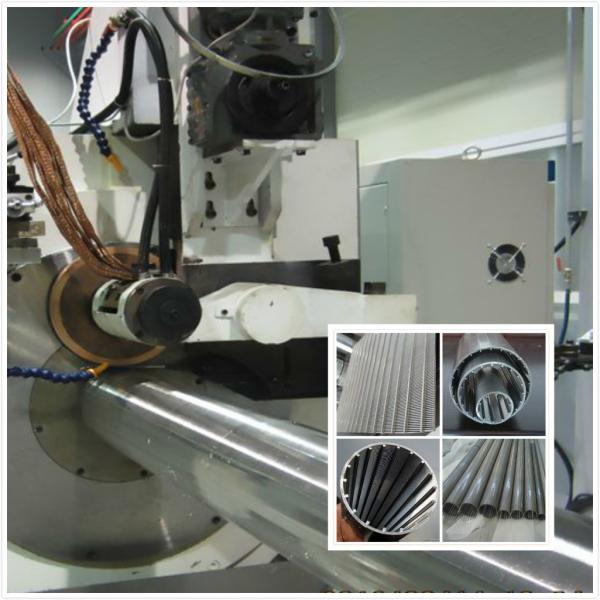

    0.05mm Slot Water Well Screen Pipe Wire Mesh Manufacturing Machine

    Water Well Screen Pipe Wire Mesh Manufacturing Machine 0.05MM Slot


    The machine is specially designed for producing water well screen in different diameters.

    Water well Screen Welding Machine also named by Wire Wrapped Screen Welding Machine and V Wire Screen Welding Machine.

    The machine tube is intended for manufacturing of wedge wire screens in length up to 6000mm.
    The strengh,precision and design flexibility make it the choice in a broad range of industries and applications.

    Professional installation and commissoning guide by mechanical and electrial engineers to ensure smooth running and production.



    Parameters for water well screen welding machine

    Item nameWater Well Screen Wedge Wire Screen Pipe Welded Machine Manufacture With Best configurationFilter tube diameter100mm-650mm
    Rod and wire diameter1.2mm-5mmFilter tube Max length6000mm
    Materialstainless steel;carbon steelMitsubishi double drive servo motor7kw two sets;5.5 one set
    Welding transformer power200 KVAWelding speed6-30 rpm
    Slot (ajustable)0.1mm-20mmSlot precision±0.03mm
    Applicationwater well screen manufacturingModel numberHWJ600
    OriginHebei ,ChinaSea portTianjin

    Note:different diameter and length screen welding machines can customized according to requirements.
    Welding machine electric system adopts Mitsubishi E60.

    The slot clearance can be adjusted as requirement.
    The data displayed on the screen can be reset easily.
    Lock-expanding ring is equipped on the machine.
    After the operator feeds the longitudinal wire,expand and lock the wire with the ring.
    I t saves time and material during unload the filter tube.



    Features and Advantages

    1. Supply to USA,Russia,Korea,France,Italy,Malaysia,Taiwan,etc,
    2. Feature:low noise,low energy consumption,steady function and safety.
    3. Professional wedge wire screen/wire wrapped screen welding machine manufacture
    4. Electric system adopts Mitsubishi E60. Ensure steay running and production.

    5. The feeding spindle and the main spindle adopt Mitsubishi AC servo motors and drives.


    Characteristics

    • Low noise
    • Low energy consumption
    • Safety
    • Steady function

    Applications in different industry

    Water well screen machine popular in water treatment processing. It produce different diameter screen tube,wedge wire screen panel,seive bend and screen basket also perfectly manufactured and applied in various industries for filtration needs.The machines are ideal for making filter tubes of oil filtering,water cleaning and water well filtering,mine mesh,medical and chemical filters.


    Global market exported with perfect production.

    Renchun Equipment ,best service for you!
