Stainless Steel Welded Wire Mesh Manufacturing Machine with
Diameter 400-1200 MM
Desciption
Stainless Steel AISI304 Weld Wire Mesh screens, also known as Wedge
wire, V-wire, and Triwire, are custom made for your application.
The features of this type of screen make it an attractive solution
for separating solids from liquids, retaining media, filtering,
sizing, dewatering, collecting, and distributing. Profile Wire
screen offers continuous slot openings that widen inwardly so that
particles tend to pass through the screen and reduce blinding.
Features & Benefits
1. Keystone design for self cleaning and maximum flow optimizing
productivity
2. Various wire shapes and slot sizes for specific requirement
3. Corrosion and erosion resistant
4. Easy and fast installation minimizing product lead times
5. Virtually maintenance-free
Production of Welded Wire Mesh Manufacturing Machine

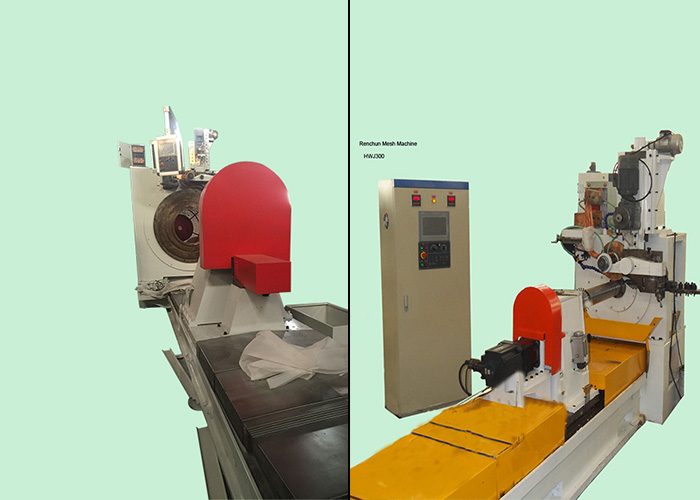

Our Stainless Steel AISI304 Weld Wire Mesh Welding Machine is an
special equipment for making wedge wire slotted screen, wire
wrapped screen, johnson screen, and water well screen etc.
AISI304 Weld Wire Mesh Machine is usually used in producing Oil
sand control screen, water well screen, the water, nozzles and so
on. with screen media higher precision, which is widely used in
petroleum, chemical, and paper industries.
General Technical Parameters
1. Wedged wire screen diameter range: 600-1200mm
2. Wedged wire screen length: max 4m
3. Slot (aperture)/Space between welding lines: 0.25-16mm
4. Welding precision: if the wire diameter tolerance is within
0.01mm, welding precision will be within +/-0.04mm.
5. Welding speed:6-30r/m adjustable based on tube diameter.
6. Welding transformer power:AC100KW
7. Driving motor power: servo motor(one 3kw, one 2kw)
8. Voltage:3 phase 380V 50 Hz 0r according to customers’
requirements
9. Dimension:11*2.1*3.8m
10. Weight:20Ton
| NO. | ITEM | Data |
| 1 | Diameter of screen tube | Max.1200mm, Min.600mm. |
| 2 | Max. Length of filter tube | 4000mm |
| 3 | Rod and wire diameter | 1.2mm to 3mm(profile wire) Please note that:you can also use the biger wire size ,while you
should be sure the biger size wire is used to weld the biger
diameter screen tube. |
| 4 | Material | Carbon steel, stainless steel |
| 5 | servo motor
| Two sets:5.5KW,One set:3.5KW
|
| 6 | Power of welding transformer | 200KVA |
| 7 | Welding speed is adjustable according to the tube diameter | Max.30rpm,6rpm |
| 8 | Slot(adjustable) | Min0.2mm,Max.16mm |
| 9 | precision of slot | ±0.03mm |
Fundamentals Of Welded Wire Mesh Welding Machine
Stainless Steel AISI304 Welded Wire Mesh Welding Machine For
Filtration And Sepration adopts Japanese Mitsubishi E60 CNC control
system.
Controlled by the Numeral control system, the servo motor drives
the ball screw as well as the drawing disk which is mounted on the
straight rail, so the slot clearance can be adjusted by touching
the control screen without stopping the machine.
It is easy to change the data on the touching screen.
Lock-expanding ring is equipped with the machine. After the
operator feeds the longitudinal wire, expand and lock the wire with
the ring.
It saves time and material during unload the filter tube.It is easy
to learn how to control the machine. It adopts Japanese Mitsubishi
E60 CNC control system.
Features and Advantages of Renchun Weld Wire Mesh Machine
A. low noise
B. less power consumption
C. safety
D. easy to operate
E. high welding precision
Advantages: Domestic famous bearings, Internal famous servo motor,
less power consumption, easily operation.
