Sieve Bend Screen Welded Wire Mesh Machine Linear Slider Bearing
For Beverage Industry
Characteristic
1. Split-hair accuracy of welding, control for both axises,
servo-feed;
2. Control system: Japan Panasonnic PLC program and HMI
3. Servo-feeds and servo-drivers: Panasonnic brand (Japan)
4. Ball and screw unit: Taiwan TBI
5. Linear slider bearing (Taiwan TBI)
Material
Stainless steel wire(2-5mm) and low carbon steel wire(2-5mm)
Specifications
Welded wire mesh welding machine
1) For 2-5mm V-wire
2) Imported components
3) PLC&HMI control system
4) ISO9001:2000; CE
What is the Fundamentals Of Weld Wire Mesh Sieve Bend screens
Machine ?

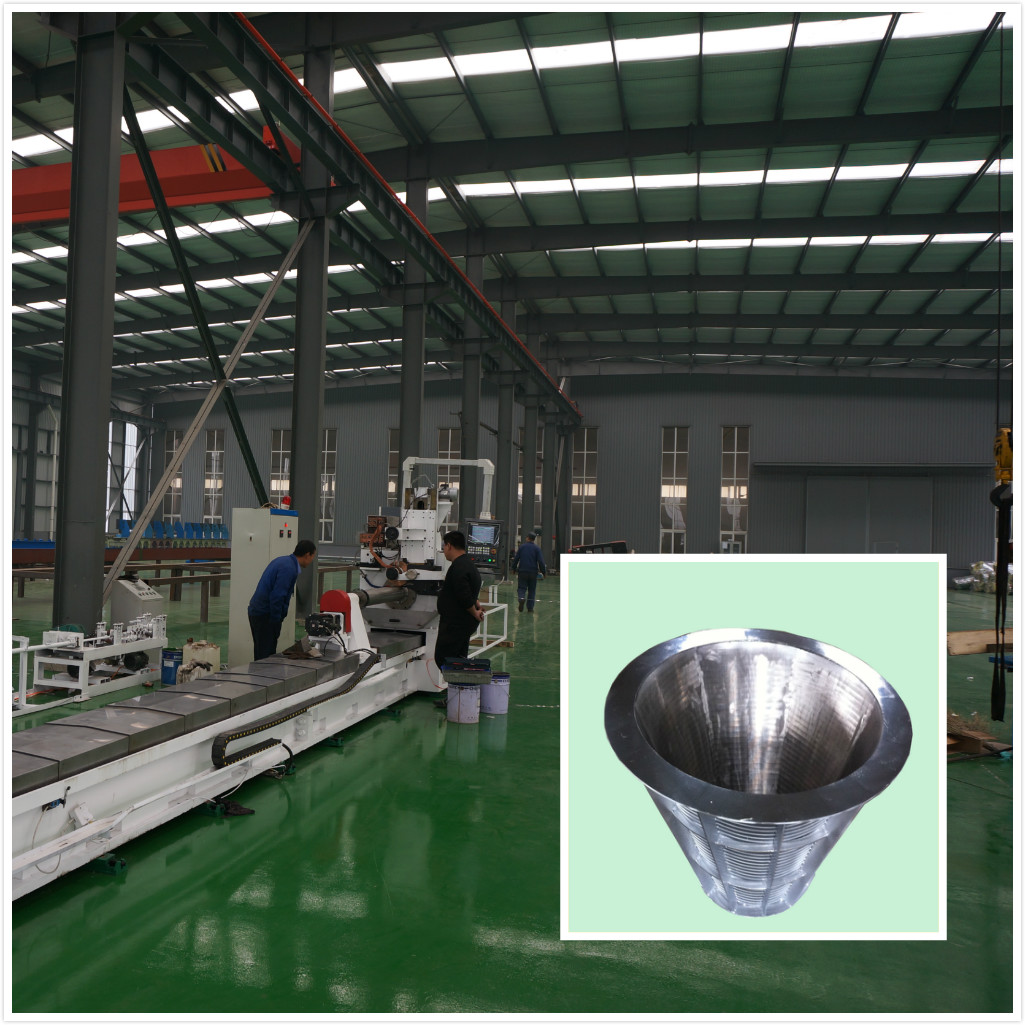

Stainless Steel Weld Wire Mesh screen Welding Machine adopts
Japanese Mitsubishi E60 CNC control system.
Controlled by the Numeral control system, the servo motor drives
the ball screw as well as the drawing disk which is mounted on the
straight rail, so the slot clearance can be adjusted by touching
the control screen without stopping the machine.
How to operate the machine? Is it easy to operate?
It is easy to change the data on the touching screen.
Lock-expanding ring is equipped with the machine. After the
operator feeds the longitudinal wire, expand and lock the wire with
the ring.
It saves time and material during unload the filter tube.It is easy
to learn how to control the machine. It adopts Japanese Mitsubishi
E60 CNC control system.
Applications
Weld Wire Mesh screen Machine, also named johnson screen welding
machine, is usually used in producing Oil sand control screen,
water well screen, the water, nozzles and so on. with screen media
higher precision, which is widely used in petroleum, chemical, and
paper industries.
Parameter
| NO. | ITEM | Data |
| 1 | Diameter of screen tube | Max.300mm, Min.50mm. |
| 2 | Max. Length of filter tube | 6000mm |
| 3 | Rod and wire diameter | 1.2mm to 3mm(profile wire) Please note that:you can also use the biger wire size ,while you
should be sure the biger size wire is used to weld the biger
diameter screen tube. |
| 4 | Material | Carbon steel, stainless steel |
| 5 | servo motor
| Two sets:5.5KW,One set:3.5KW
|
| 6 | Power of welding transformer | 200KVA |
| 7 | Welding speed is adjustable according to the tube diameter | Max.30rpm,6rpm |
| 8 | Slot(adjustable) | Min0.2mm,Max.16mm |
| 9 | precision of slot | ±0.03mm |
Renchun Weld Wire Mesh Machine Features and Advantages
A. low noise
B. less power consumption
C. safety
D. easy to operate
E. high welding precision
Advantages: Domestic famous bearings, Internal famous servo motor,
less power consumption, easily operation
