Mining Screen Panels V Wedge Wire Screen Machine 8700MM Length
1. Wedge wire screen machine description
Do you know Wedge wire screen machine?
Usage: welding wire wrapped screen pipe, mineral filtrating mesh,
coal washing mesh, water filtration mesh, water well screen etc.
| Product Name | Nc wire mesh filter/ wedge wire screen welding machine/Manufacture
wedge wire screen mesh filter welding machine |
| Material | stainless steel/carbon steel |
| Color | According to request |
| Servo motor | 7.5kw two sets;3.5kw one set |
| Wire range | 1.0*1.5-2.7*3mm |
| Slot clearance | 0.1mm-16mm |
| Linear guide | Taiwan 45 |
| Used | The machines are ideal for making filter tubes of oil
fitering,water cleaning,water well filtering,mine mesh,mine
mesh,medical and chemical filters. |
Machine functions:
Machine’s working mode: Automatic mode and Adjustable mode
a). Automatic mode, input correct variable values then the machine
will working in automatic cycle.
b). Adjustable mode, every parts movement could be adjustable.
Regarding the Wrap wire screen, we believe many people have good
knowledge of this kind products.
At present, basing on the Wrap wire screen good features(Fine slot
size, high filtering precision, firm structure, high temperature
and corrosion resistance), wedge wire screen almost instead of
bridge screen, slotted screen, and others.
How to weld the Wedge wire screen using the machines?

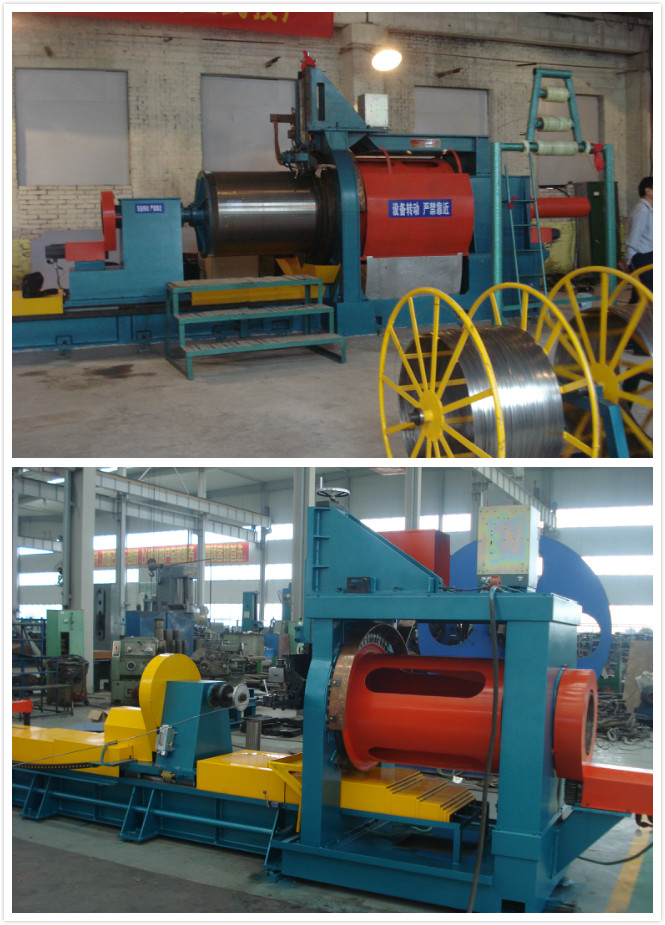

Wedge wire screen machine adopts Japanese Mitsubishi E60 CNC
control system.
Controlled by the Numeral control system, the servo motor drives
the ball screw as well as the drawing disk which is mounted on the
straight rail, so the slot clearance can be adjusted by touching
the control screen without stopping the machine.
It is easy to change the data on the touching screen.
Lock-expanding ring is equipped on the machine. After the operator
feeds the longitudinal wire, expand and lock the wire with the
ring.
2. Mining Filtration Wedge V- Wire Screen Welding Machine/Wedge
Wire Screen Machine
1. Equipment: HWJ300 wedge wire screen welding machine
2. Dimention: 1100*110*260mm
3. Tube diameter: 80-300mm
4. Tube length:4000mm/6000mm
5. Certification: CE,UL
3. our customer
Mining Filtration Wedge V- Wire Screen Welding Machine/Wedge Wire
Screen Machine
Sale market:
Domestic market: Heilongjiang , Liaoning, Tianjin, Hebei, Henan,
Shandong, Shanghai, Guizhou, Hubei, Shanxi, jiangsu, etc.
Foreign market: the United States, Brazil, Italy, Belgium, South
Korea, Singapore, Tunisia, Turkey, Russia, India, etc.
Enterprise development concept and service
friendly cooperation
development and innovation,
mutual benefit
90 days after receiving the advance payment
Specifications
Stainless steel wedge wire screen welding machine
1) V-wire dia:2-5mm
2) Max length:4m(wedge wire screen);6m(tube)
3) Hot sale
