Brand Name : | Renchun |
Model Number : | HWJ600 |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Delivery Time : | 30-90 days |
Supply Ability : | 50 sets per year |

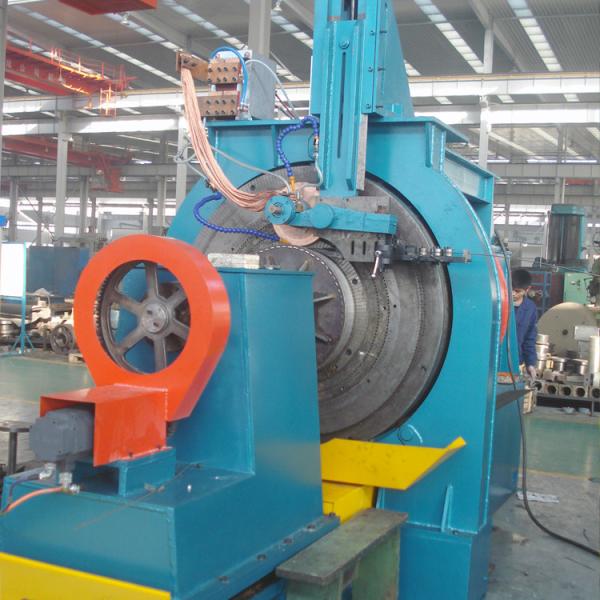

6-30 RPM Wedge Wire Screen Welding Machine For Water Well Screens
Stainless Steel
We satisfy our clients by the perfect design,new
technology,practical function and easy operation. We have obtained
the patent for our technology.
The profile wire is wound around the support rods over the full
length of the screen thus creating a continuous slot opening. The
water well screens have a perfectly flat and smooth surface with
rectangular openings, SS wedge wire screen, SS wedge profile wire
screen Cylinder or SS wedge Cylindrical Screen .
The equipment is equipped with Mitsubishi system and drive,NC
control with high precision and steady fundtion. Diameter max to
650mm, and length of screen filter tube is 6000mm. Other sizes also
be achieved.
Parameters for water well screen welding machine
Item name | Water Well Screen Wedge Wire Screen Pipe Welded Machine Manufacture With Best configuration | Filter tube diameter | 100mm-650mm |
Rod and wire diameter | 1.2mm-5mm | Filter tube Max length | 6000mm |
Material | stainless steel;carbon steel | Mitsubishi double drive servo motor | 7kw two sets;5.5 one set |
Welding transformer power | 200 KVA | Welding speed | 6-30 rpm |
Slot (ajustable) | 0.05mm-20mm | Slot precision | ±0.03mm |
Application | water well screen manufacturing | Model number | HWJ600 |
Origin | Hebei ,China | Sea port | Tianjin |
Our services
Features and Advantages
1. Steady funtion and high precison and good round by best
configuration equipped.
2. Feature:low noise,low energy consumption,steady function and
safety.
3. Professional wedge wire screen/wire wrapped screen welding
machine manufacture
4. Electric system adopts Mitsubishi E60.
5. The feeding spindle and the main spindle adopt Mitsubishi AC
servo motors and drives.
Characteristics
The slot clearance can be adjusted as requirement.
The data displayed on the screen can be reset easily.
Lock-expanding ring is equipped on the machine.
After the operator feeds the longitudinal wire,expand and lock the
wire with the ring.
I t saves time and material during unload the filter tube.
![]() |
