    Johnson Slotted Screen Welded Wire Mesh Machine With Rotary Drum Pulling Box

    RENCHUN Slotted Screen Welding Machine for Wastewater Treatment


    Renchun Slotted Screen Welding Machine description


    Regarding to the Slotted Screen, we believe many people have good knowledge of this kind products.


    At present, basing on the Slotted Screen good features (Fine slot size, high filtering precision, firm structure, high temperature and corrosion resistance), Slotted Screen are widely welcomed by many industries.

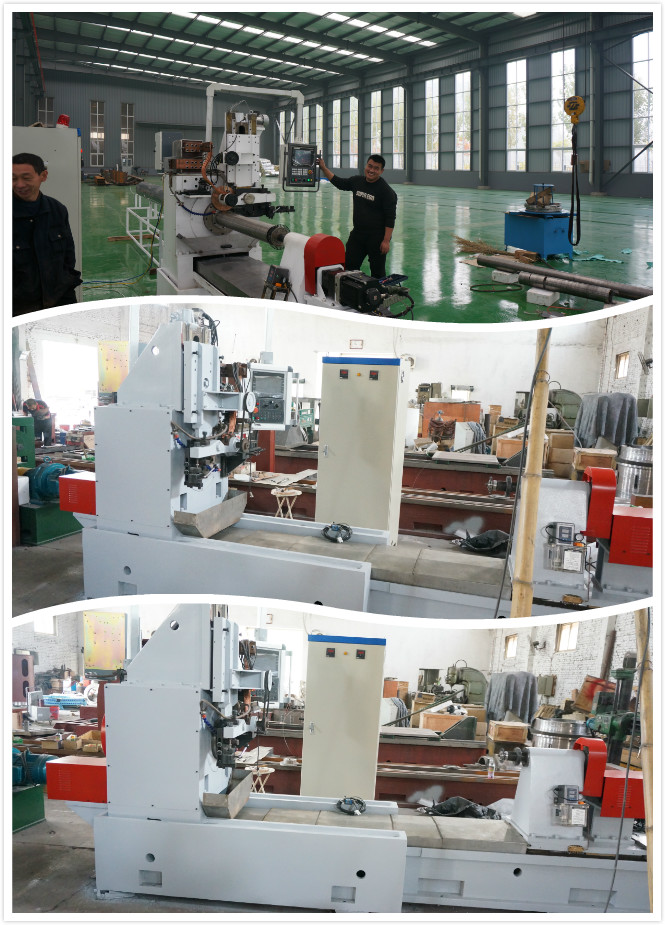

    Renchun Slotted Screen Welding Machine Structure:


    1. The machine mainly consists of lathe bed, main axis base, rotary drum, pulling box, welding electrode and adjustment mechanism, water cooling mechanism, electric control cabinet etc.


    2. Digital technology is used in all the movement of the machine, which can ensure good working.


    3. The slideway is completed with high-precision imported linear slider bearing. The mechanism can ensure uniform tension, running stable and reliable, fully guarantee the slot size uniform.


    4. This machine is CNC control, the slot size can be adjusted randomly according to customer's requirements.


    Parameters of Renchun Johnson Slotted Screen Welded Wire Mesh Machine:


    Renchun Johnson slotted screen welding equipment adopts Japanese Mitsubishi E60 CNC control system.


    Controlled by the Numeral control system, the servo motor drives the ball screw as well as the drawing disk which is mounted on the straight rail, so the slot clearance can be adjusted by touching the control screen without stopping the machine.


    It is easy to change the data on the touching screen. Lock-expanding ring is equipped on the machine. After the operator feeds the longitudinal wire, expand and lock the wire with the ring.


    1Diameter of screen tubeMax.200mm,Min.50mm
    2Max. Length of filter tube4000-6000mm
    3Rod and wire diameter0.75mm to 1.5mm(profile wire)
    4MaterialCarbon steel, stainless steel
    5servo motorThree sets:2.5KW
    6Power of welding transformer200KVA
    7Welding speed is adjustable according to the tube diameterMax.40rpm,Min6rpm
    8Slot(adjustable)Min0.08,Max.5mm
    9precision of slot±0.02mm

    Our customer


    Sale market:

      Domestic market: Heilongjiang , Liaoning, Tianjin, Hebei, Henan, Shandong, Shanghai, Guizhou, Hubei, Shanxi, jiangsu, etc.

      Foreign market: the United States, Brazil, Italy, Belgium, South Korea, Singapore, Tunisia, Turkey, Russia, India, etc.

      Enterprise development concept and service

      friendly cooperation

      development and innovation,

      mutual benefit


    Features and advantages


    A. low noise

    B. less power consumption

    C. safety

    D. easy to operate

    E. high welding precision
