Automatic PLC Vee Wedge Wire Screen Welding Machine 2300MM Height
1. Automatic PLC wedge wire screen mesh welding machines made in
China from Renchun
Customers' question on wedge wire screen welding machine in the
following
Q: What's the machine price?
A: We need to know your wanted screen diameter, screen length,
V-wire size, V-wire space ETC.
Q: Can you make voltage according to my requirement?
A: yes, we can make 3 phase, 380V/220V/415V/440V, 50Hz or 60Hz etc.
Q: What's the payment terms?
A: 30% T/T in advance, 70% T/T before shipment, or 100% irrevocable
L/C at sight, or cash etc.
It is negotiationable.
Q: How to install the machines?
A: Please check below "After sales service"
Each wedge wire screen product is custom designed to suit the
specific requirements of the customer and to enable a relatively
low cost and high performance solution for the screening
application. The high open area of the wedge wire screen offers
continuous slot openings that widen inwardly so the particles tend
to pass through the screen.The all-welded stainless steel
construction produces high strength and extended service life
suitable for many screening applications.
How to weld the V wedge wire screen stainless steel water well
screens /Water well screen?

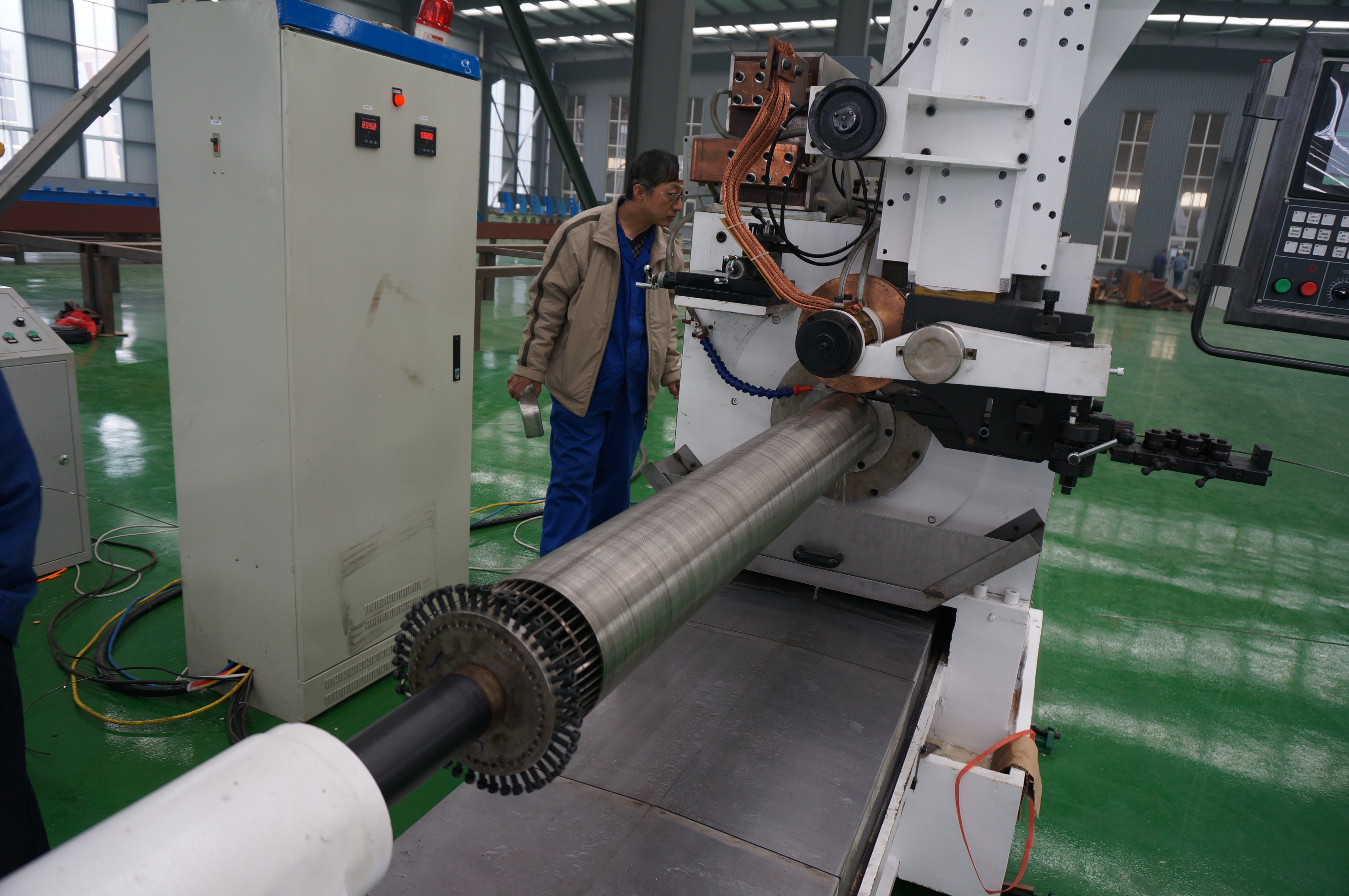

Wedge Wire Screen welding equipment adopts Japanese Mitsubishi E60
CNC control system.
Controlled by the Numeral control system, the servo motor drives
the ball screw as well as the drawing disk which is mounted on the
straight rail, so the slot clearance can be adjusted by touching
the control screen without stopping the machine.
It is easy to change the data on the touching screen.
Lock-expanding ring is equipped on the machine. After the operator
feeds the longitudinal wire, expand and lock the wire with the
ring.
2. HWJ200 automatic PLC wedge wire screen mesh welding machines made
in China from Renchun Factory
| 1 | Diameter of screen tube | Max.200mm,Min.50mm |
| 2 | Max. Length of filter tube | 4000-6000mm |
| 3 | Rod and wire diameter | 0.75mm to 1.5mm(profile wire) |
| 4 | Material | Carbon steel, stainless steel |
| 5 | servo motor | Three sets:2.5KW |
| 6 | Power of welding transformer | 200KVA |
| 7 | Welding speed is adjustable according to the tube diameter | Max.40rpm,Min6rpm |
| 8 | Slot(adjustable) | Min0.08,Max.5mm |
| 9 | precision of slot | ±0.02mm |
3. our customer
HWJ200 wedged wire screen welding machine With Double Bearings
Sale market:
Domestic market: Heilongjiang , Liaoning, Tianjin, Hebei, Henan,
Shandong, Shanghai, Guizhou, Hubei, Shanxi, jiangsu, etc.
Foreign market: the United States, Brazil, Italy, Belgium, South
Korea, Singapore, Tunisia, Turkey, Russia, India, etc.
Enterprise development concept and service
friendly cooperation
development and innovation,
mutual benefit
4. Features and advantages
A. low noise
B. less power consumption
C. safety
D. easy to operate
E. high welding precision
Pre-Sales Service
* Inquiry and consulting support.* Sample testing support.* View
our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the
machine.
* Engineers available to service machinery overseas.
5. Packing and loading
1. The mechanical parts bared in container
2. Touch screen and control cabinet packed in wooden box.
Wedge Wire Screen Welding Machine RFQ
Q: What's the machine price?
A: We need to know your wanted screen diameter, screen length,
V-wire size, V-wire space ETC.
Q: Can you make voltage according to my requirement?
A: yes, we can make 3 phase, 380V/220V/415V/440V, 50Hz or 60Hz etc.
Q: What's the payment terms?
A: 30% T/T in advance, 70% T/T before shipment, or 100% irrevocable
L/C at sight, or cash etc.
It is negotiationable.
Q: How to install the machines?
A: Please check below "After sales service"
