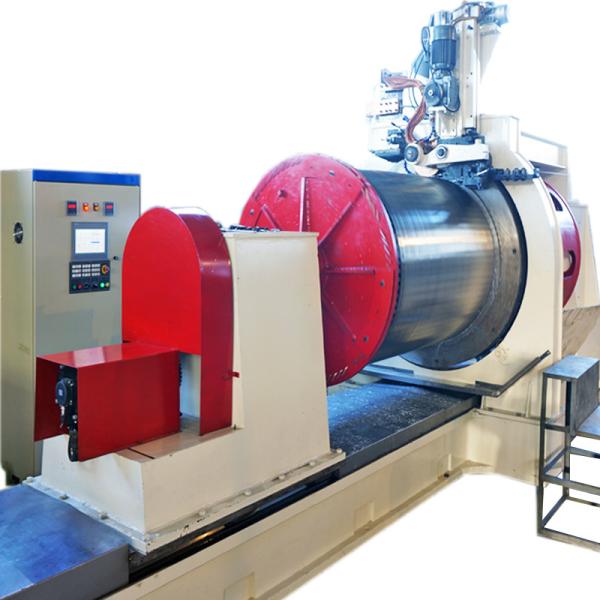

6-40 RPM Wire Mesh Welding Machine Low - Carbon Galvanized Wire
Material
1. Company Information
Notice:
1, It has two servo-motor, one is rotation; the another is drawing.
2, The material is low-carbon galvanized wire.
3 ,It adopts CNC control systerm.
Accessorial Parts:
V-shaped wire machine; wire rolling machine;
straightening&cutting machine; electric control cabinet;
flatter mesh machine; cutting mesh machine
Note: Two motors, one for drawing mesh 2kw, one for rolling the
mould 3kw
2. Machine Description
Are you familiar with Wire Mesh Welding Machine?
Regarding to the Wire Mesh Welding Machine, usually called wedge
wire screen welding machine.it is produced through the method of
electric resistance welding:wires with special profile are welded
to supporting wires at 90 degrees angle.
At present ,basing on the Water well screen welding machine good
features(Fine slot size, high filtering precision, firm structure,
high temperature, and corrosion resistance),wedge wire screen
almost instead of bridge screen, slotted screen, and others.

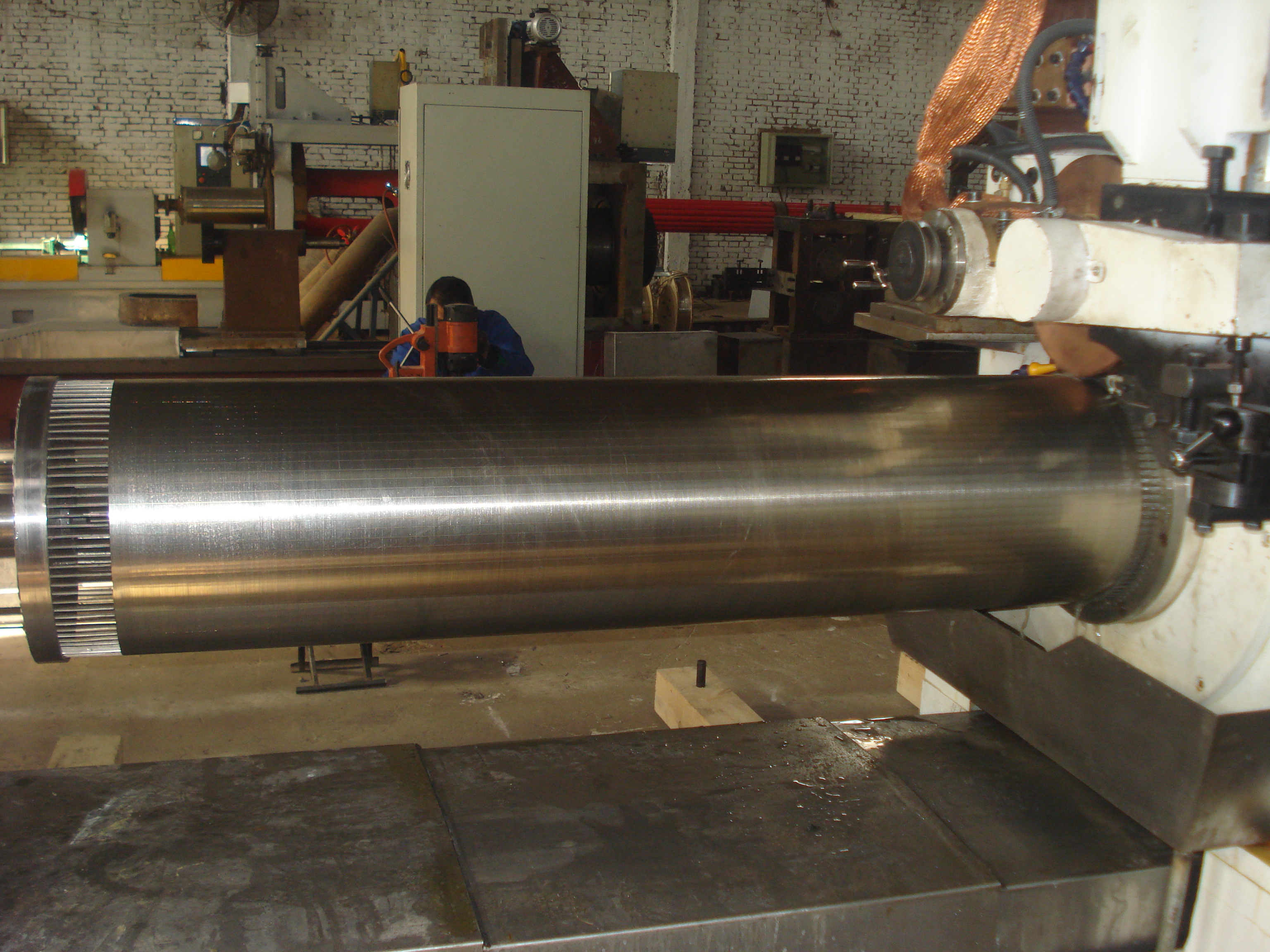

Our Wire Mesh Welding Machine is an special equipment for making
wedge wire screen,wire wrapped screen ,johnson screen ,and water
well screen etc.
Wire Mesh Welding Machine------- Fundamentals Of Welding
how to weld wire mesh?
Mesh welding equipment adopts the method of electric resistance
welding .
Controlled by the Numeral control system, the servo motor drives
the ball screw as well as the drawing disk which is mounted on the
straight rail, so the slot clearance can be adjusted by touching
the control screen without stopping the machine.
It is easy to change the data on the touching screen.
Lock-expanding ring is equipped on the machine. After the operator
feeds the longitudinal wire, expand and lock the wire with the
ring.
It saves time and material during unload the filter tube.It is easy
to learn how to control the machine.
3 Wire Mesh Welding Machine Mesh Welder Mesh Welding Machine
Manufacturer Made In Turkey by Quality and Guarantee
| NO. | ITEM | Data |
| 1 | Diameter of filter tube | Max.300mm,Min.80mm. |
| 2 | Max. Length of filter tube | Max.6000mm |
| 3 | Rod and wire diameter | 1.0mm to 3mm. |
| 4 | Material | Carbon steel, stainless steel |
| 5 | Mitsubishi double-drive servo motor
| Two sets:7.5KW,One set:3.5KW
|
| 6 | Power of welding transformer | 200KVA |
| 7 | Welding speed is adjustable according to the tube diameter | Max.40rpm,6rpm |
| 8 | Slot(adjustable) | Min0.10mm,Max.20mm |
| 9 | precision of slot | ±0.03mm |
4. Our customer
Renchun HWJ300 Water Well Screen Welding Machine Foreign market:
the United States, Brazil, Italy, Belgium, South Korea, Singapore,
Tunisia, Turkey, Russia, India, etc.
