    Stainless Steel Wire Wrapped Screen Welded Wire Mesh Machine Wedge Tech

    Ask Lasest Price
    Brand Name : Renchun
    Model Number : HWJ1000
    Payment Terms : D/P, T/T, Western Union, MoneyGram, D/A, L/C
    Delivery Time : 30-90 days
    • Product Details
    • Company Profile

    Stainless Steel Wire Wrapped Screen Welded Wire Mesh Machine Wedge Tech

    Stainless Steel Wire Wrapped Screen Welded Wire Mesh Machine Wedge Tech

    1. Wedge wire screen machine description

    Do you know Wedge wire screen machine?


    Specifications

    Wedge wire screen welding machine for oil filter
    1. Wire diameter:2-5mm
    2. Tube diameter:60-1200mm
    3. Tube length:6000mm

    Wedge wire screen welding machine for oil filter


    Regarding the Wrap wire screen, we believe many people have good knowledge of this kind products.
    At present, basing on the Wrap wire screen good features(Fine slot size, high filtering precision, firm structure, high temperature and corrosion resistance), wedge wire screen almost instead of bridge screen, slotted screen, and others.

    How to weld the Wedge wire screen using the machines?

    Wedge wire screen machine adopts Japanese Mitsubishi E60 CNC control system.

    Controlled by the Numeral control system, the servo motor drives the ball screw as well as the drawing disk which is mounted on the straight rail, so the slot clearance can be adjusted by touching the control screen without stopping the machine.

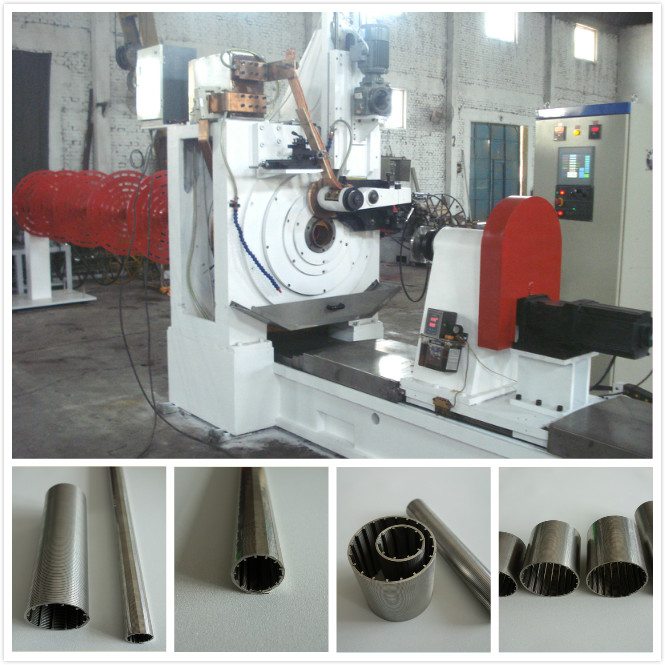

    wedge wire water well screen welding machine

    The wedge wire water well screen welding machine is special for welding wedge wire screen (mesh), water well screen (mesh), Vee-wire screen (mesh) for any filtering purpose in chemistry, mining industry and enviromental protection industry, etc.

    2. HWJ1000 Stainless Steel Wedge Tech Wire Mesh Wrap Wire Screen Welding Machine


    No.ITEMData
    1Diameter of screenMin.300mm,Max.1000
    2Max.Length of filter tube4000mm
    3Rod and wire diamter1.2 to 3mm(profile wire)
    4MaterialCarbon steel,stainless steel
    5Servo motorTwo sets:7KW,One set:5KW
    6Power of welding Transformer200kva
    7Welding speed6-30rpm
    8Slot0.2-16mm
    9Precision of slot+/-0.03mm
    10Gross weight12 Ton
    11Outside DimensionL13000mm*W1500mm*H2100mm

    HWJ1000 Stainless Steel Wedge Tech Wire Mesh Wrap Wire Screen Welding Machine

    3. our customer




    I Main features of the wedge wire water well screen welding machine

    1) This machine is of two-axle CNC control, servo motor drive, high welding precision.

    2) Two working methods: manual and auto. Under Auto method, by inputting relative data, the machine will work automatically.

    3) Very strong self-diagnose function, can display any mis-operation alarms; Alarming error can be seen from displayer.


    After-Sales Service

    * Training how to instal the machine, training how to use the machine.
    * Engineers available to service machinery overseas.



    5 Packing and loading
    1. The mechanical parts bared in container
    2. Touch screen and control cabinet packed in wooden box.
