    0.2-16 MM Slot Wedge Wire Screen Welding Machine With Mitsubishi Servo Motor

    Ask Lasest Price
    Brand Name : Renchun
    Model Number : HWJ1000
    Payment Terms : D/P, T/T, Western Union, MoneyGram, D/A, L/C
    Delivery Time : 30-90 days
    • Product Details
    • Company Profile

    0.2-16 MM Slot Wedge Wire Screen Welding Machine With Mitsubishi Servo Motor

    0.2-16 MM Slot Wedge Wire Screen Welding Machine With Mitsubishi Servo Motor

    1. Wedge wire screen machine description

    Do you know Wedge wire screen machine?
    Regarding the Wrap wire screen, we believe many people have good knowledge of this kind products.
    At present, basing on the Wrap wire screen good features(Fine slot size, high filtering precision, firm structure, high temperature and corrosion resistance), wedge wire screen almost instead of bridge screen, slotted screen, and others.

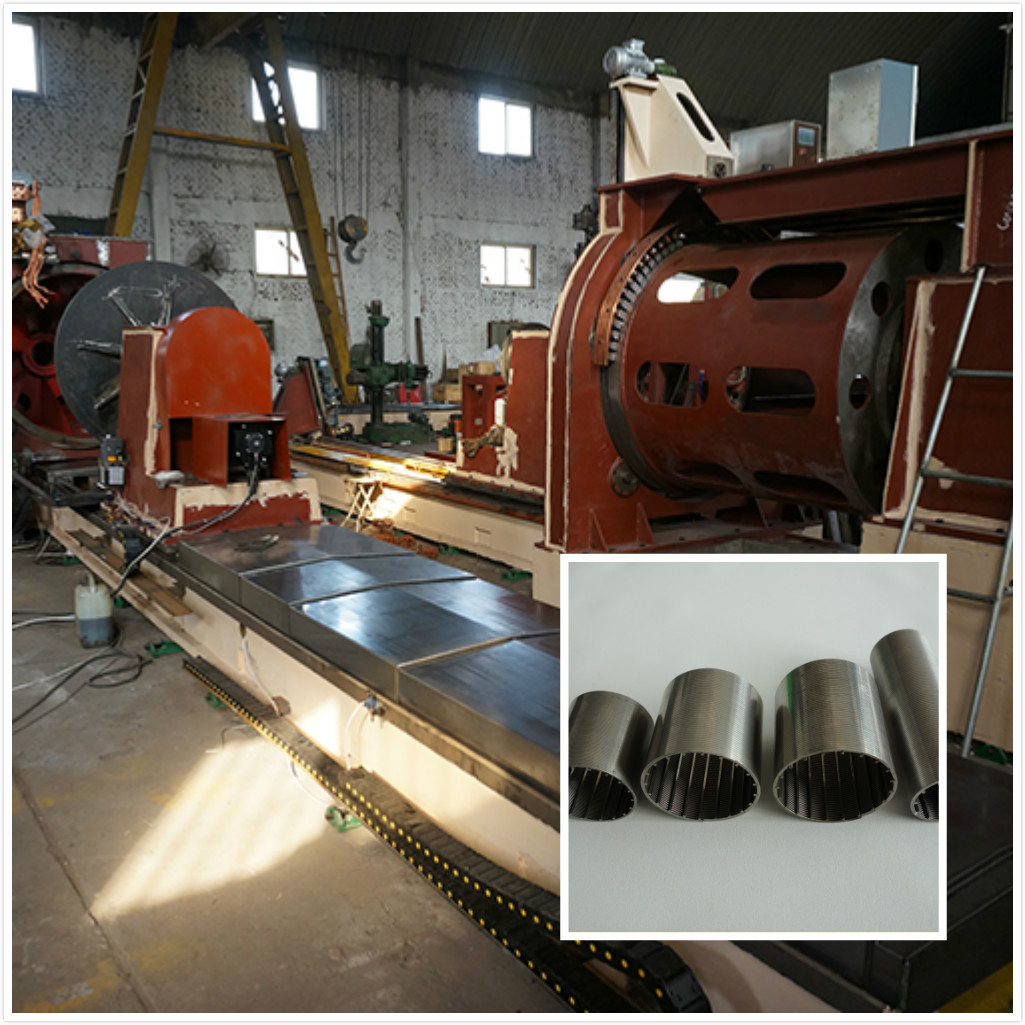

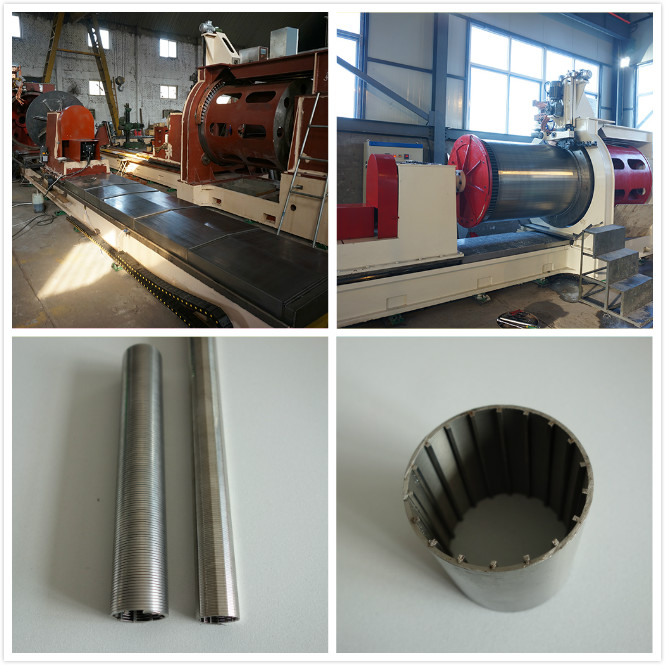

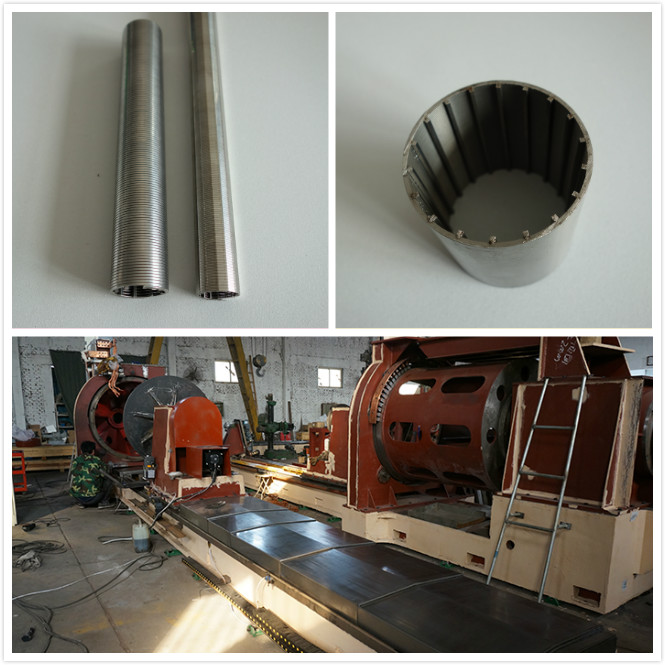

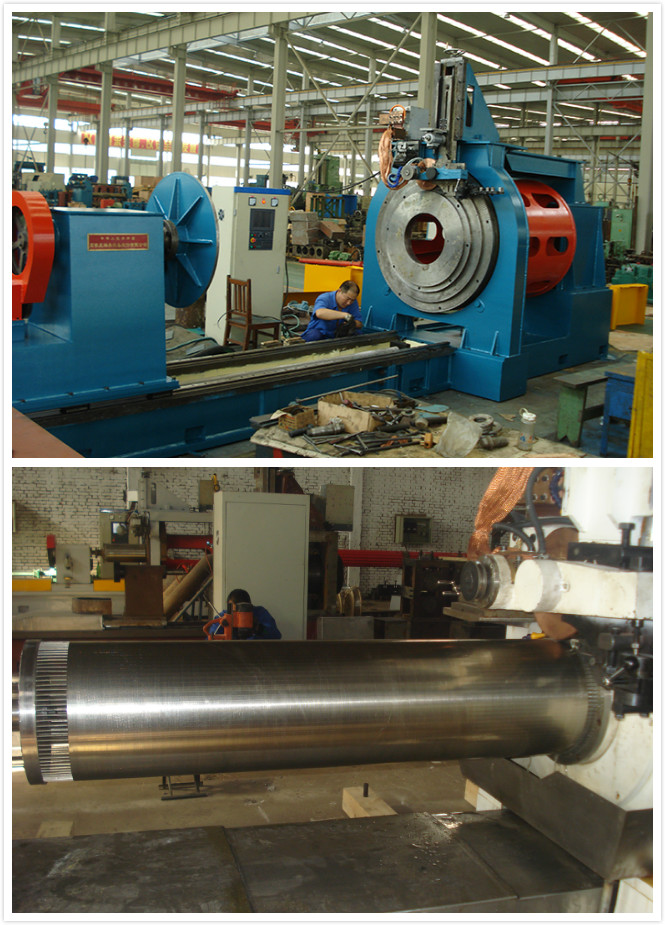

    The wedged wire screen welding machines is intended for manufacturing of wedge wire screens in length up to max.6000mm. the strength, precision, and design flexibility that characterize our screens makes them the choice a broad range of industries

    and applications. it made up of CNC mainframe, welding transformer, control cabinet and so on.
    the usage for welding wedged wire wrapped screen pipe, mineral filtrating mesh, coal washing mesh, water filtration, water well screen, etc.



    Renchun 0.2-16mm Slot hwj1000 Wedge Wire Screen Welding Machine

    How to weld the Wedge wire screen using the machines?

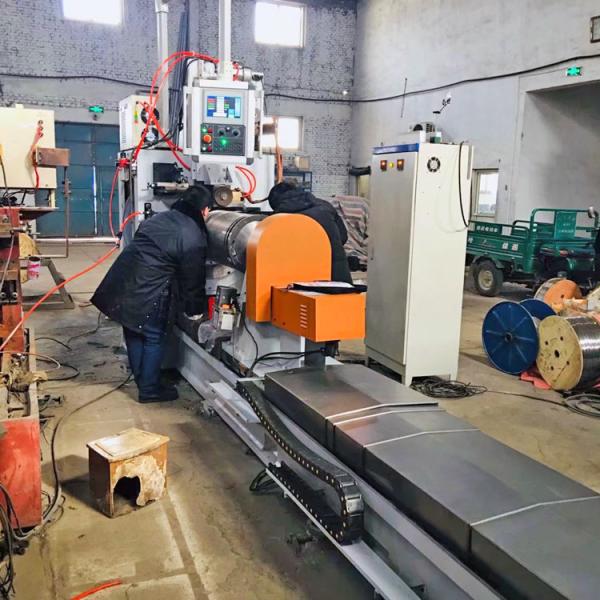

    Wedge wire screen machine adopts Japanese Mitsubishi E60 CNC control system.

    Controlled by the Numeral control system, the servo motor drives the ball screw as well as the drawing disk which is mounted on the straight rail, so the slot clearance can be adjusted by touching the control screen without stopping the machine.



    It is easy to change the data on the touching screen. Lock-expanding ring is equipped on the machine. After the operator feeds the longitudinal wire, expand and lock the wire with the ring.

    2. Renchun 0.2-16mm Slot hwj1000 Wedge Wire Screen Welding Machine


    No.ITEMData
    1Diameter of screenMin.300mm,Max.1000
    2Max.Length of filter tube4000mm
    3Rod and wire diamter1.2 to 3mm(profile wire)
    4MaterialCarbon steel,stainless steel
    5Servo motorTwo sets:7KW,One set:5KW
    6Power of welding Transformer200kva
    7Welding speed6-30rpm
    8Slot0.2-16mm
    9Precision of slot+/-0.03mm
    10Gross weight12 Ton
    11Outside DimensionL13000mm*W1500mm*H2100mm




    3. our customer


    Renchun 0.2-16mm Slot hwj1000 Wedge Wire Screen Welding Machine
    Sale market:
      Domestic market: Heilongjiang , Liaoning, Tianjin, Hebei, Henan, Shandong, Shanghai, Guizhou, Hubei, Shanxi, jiangsu, etc.
      Foreign market: the United States, Brazil, Italy, Belgium, South Korea, Singapore, Tunisia, Turkey, Russia, India, etc.
      Enterprise development concept and service
      friendly cooperation
      development and innovation,
      mutual benefit


    FAQ

    Q: Are you trading company or manufacturer ?

    A: We are factory .

    Q: How long is your delivery time?

    A: Generally it is 30 -60 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.

    Q: Do you provide oversea engineer train for installation and testing ?

    A: Yes, our professional engineer can train for installation and testing for free.

    Q: What is your terms of payment ?

    A: Payment 30% T/T in advance ,balance before shippment.
    If you have another question, pls feel free to contact us as below:




    4. Features and advantages

    A. low noise
    B. less power consumption
    C. safety
    D. easy to operate
    E. high welding precision

    Pre-Sales Service

    * Inquiry and consulting support.* Sample testing support.* View our Factory.


    5 Packing and loading
    1. The mechanical parts bared in container
    2. Touch screen and control cabinet packed in wooden box.
