    Multifunctional Wedge Wire Screen Machine Producing Oil Sand Control Screen

    Ask Lasest Price
    Brand Name : Renchun
    Model Number : HWJ1000
    Payment Terms : D/P, T/T, Western Union, MoneyGram, D/A, L/C
    Delivery Time : 30-90 days
    • Product Details
    • Company Profile

    Multifunctional Wedge Wire Screen Machine Producing Oil Sand Control Screen

    Multifunctional Wedge Wire Screen Machine Producing Oil Sand Control Screen

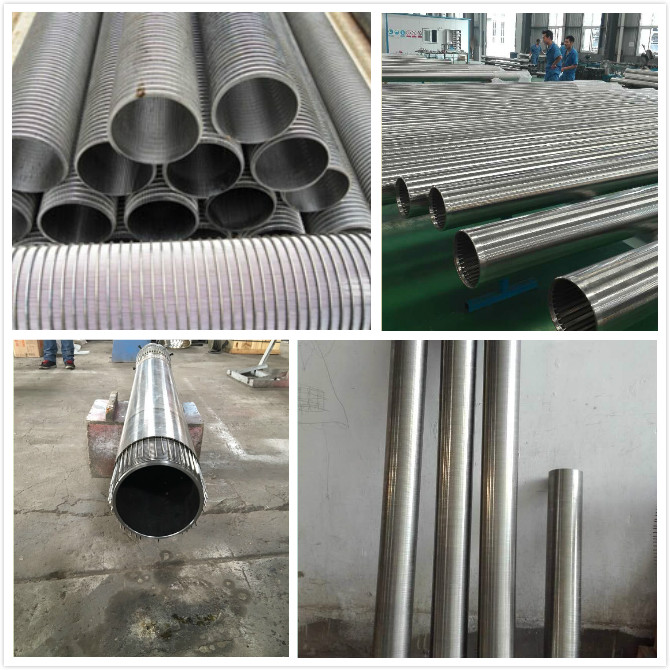

    HWJ300 Type wedge wire screen welding machine(wrap wire screen machine),also named johnson screen welding machine,is usually used in producing Oil sand control screen,water well screen,the water ,nozzles and so on. with screen media higher precision ,which is widely used in petroleum, chemical, and paper industries.

    1. Machine Description

    1. The machine mainly consists of lathe bed, main axis base, rotary drum, pulling box, welding electrode and adjustment mechanism, water cooling mechanism, electric control cabinet etc.
    2. Digital technology is used in all the movement of the machine, which can ensure good working.
    3. The slideway is completed with high-precision imported linear slider bearing. The mechanism can ensure uniform tension, running stable and reliable, fully guarantee the slot size uniform.
    4. This machine is CNC control, the slot size can be adjusted randomly according to customer's requirements.


    How to weld the Wedge wire screen using the machines?

    Wedge wire screen machine adopts Japanese Mitsubishi E60 CNC control system.

    Controlled by the Numeral control system, the servo motor drives the ball screw as well as the drawing disk which is mounted on the straight rail, so the slot clearance can be adjusted by touching the control screen without stopping the machine.


    2. Multifunctional Wedge Wire Screen Welding Machine With High Quality

    No.ITEMData
    1Diameter of screenMin.300mm,Max.1000
    2Max.Length of filter tube4000mm
    3Rod and wire diamter1.2 to 3mm(profile wire)
    4MaterialCarbon steel,stainless steel
    5Servo motorTwo sets:7KW,One set:5KW
    6Power of welding Transformer200kva
    7Welding speed6-30rpm
    8Slot0.2-16mm
    9Precision of slot+/-0.03mm
    10Gross weight12 Ton
    11Outside DimensionL13000mm*W1500mm*H2100mm


    3. our customer

    Multifunctional Wedge Wire Screen Welding Machine With High Quality
    Professional Factory Automatic Machinery Wedge Wire Cylindrical Screen Welded Wire Mesh Machine
    Sale market:
      Domestic market: Heilongjiang , Liaoning, Tianjin, Hebei, Henan, Shandong, Shanghai, Guizhou, Hubei, Shanxi, jiangsu, etc.
      Foreign market: the United States, Brazil, Italy, Belgium, South Korea, Singapore, Tunisia, Turkey, Russia, India, etc.
      Enterprise development concept and service
      friendly cooperation
      development and innovation,
      mutual benefit


    4. Features and advantages

    A. low noise
    B. less power consumption
    C. safety
    D. easy to operate
    E. high welding precision

    Pre-Sales Service

    * Inquiry and consulting support.* Sample testing support.* View our Factory.

    After-Sales Service

    * Training how to instal the machine, training how to use the machine.
    * Engineers available to service machinery overseas.



    5 Packing and loading
    1.The mechanical parts bared in container
    2.Touch screen and control cabinet packed in wooden box.
